LAUNCH X431 PAD V Elite ECU Coding Scan Tool,Topology Map,Full System Diagnostic Scanner,Full Bi-Directional Control & 60+ Reset

(19 customer reviews)

Price range: $4,646.40 through $6,650.16

Description

LAUNCH X431 PAD V elite ECU Online Programming Coding Scan Tool with Topology Map Full System Diagnostic Scanner,Full Bi-Directional Control,60+ Reset Functions,Heavy Duty Truck,CAN FD,5G WiFi,2 Years free Update PK PAD VII 689 BT

Launch X431 PAD V is launch flagship automotive diagnostic tool.100% Original.it supports online programming models up to 30+ car brands and NO IP LIMITED! launch x431 pad v is the newly developed high-end comprehensive diagnostic equipment with charging,have same function as X431 Throttle,x431 TAB II.

LAUNCH X431 PAD V Elite(PAD 5) Highlights:

1,10.1 inch Touchscreen + Android 11 system

2, 2 Years Free Update,lifetime Free Use.

3,OE-Level All System Diagnose + 50 reset services
4,FCA AutoAuth Access + Renault SGW(Pay extra)
5,X431 FIX Database.(Buy in Mall)

6,Online ECU Programming + Online Coding +J2534 Programming

7,Support 5G Wifi Dignosis,4G RMA +256GB ROM.
8,Updated The Connector from Smart Box 3.0 to Smart link C,Added Super Remote Diagnose.
9,Full Bi-Directional Control/Active Test +ECU Coding+Guided Function For VW+ SCN Online Coding.

10,Support Topology Map + J2534/RP1210/D-PDU/CAN FD /DOIP NEW protocols.
11,25 Languages supported,No Language barrier.

12,AUTO VIN Scan +Remote Diagnostic + Diagnose feedback + Maintenance Records.

13,Support the expansion of 24V truck diagnosis (pay extra)
14,3 years Warranty + lifetime Free tech Supports.

15,added Tesla _EV vehicles: Model – 3,Model -S and Model -X (Buy in Mall)

16,Extended Module:Compatible with oscilloscope,X-Prog 3,TSGUN/I-TPMS,RFSENSOR,BST360 BATTERY TESTER,VSP600 Videoscope,ADAS,24V heavy Duty Software,wifi printer,new energy vehicle,multimeter,Ignition analysis etc.(all need buy extra)

Achieve Your Diagnostic Need & Solve All Your Problems!!!

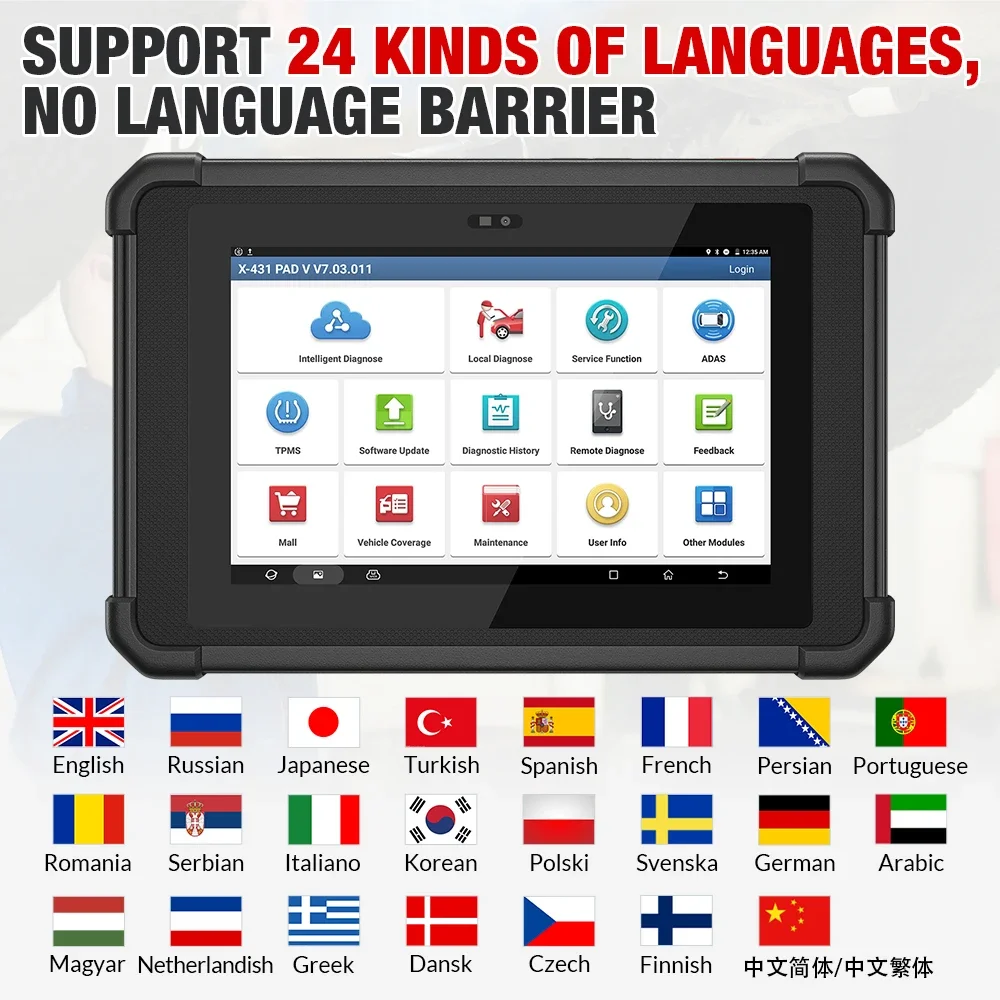

Multi-Language Supports

Support English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish, Persian, Romanian, Serbian, Swedish, Chinese Traditional

Why should you buy a PAD V not a PAD VII?

1. The functions are the same, 1.all support the online programming of Mercedes-Benz, B-MW and even 30+ brands, 2.all support the topology mapping,3. all support canfd, doip,j2534, heavy truck protocol, etc., 4.all support the online coding of Mercedes-Benz, as well as the online coding of Volkswagen, Audi and other brands, 5.and also support the latest connector of smartlink 2.0. 6.It also supports the most expansion modules, with a total of more than 10, and 7. also supports 1000+ action testing, the whole system, 300+ special functions, offline coding and other full system functions.

2.Launch X431 PAD V is totally the same with the x431 pad Ⅶ In terms of every function,Except for screen size and battery capacity,but ours x431 pad v is 700 Cheaper than them, is equivalent to getting 3 years of f-ree upgrade.Although PAD Ⅶ's screens are larger, their machines are bulkier, less portable and inconvenient.And Even though they have more memory, they are not faster than the pad v in terms of data processing speed.

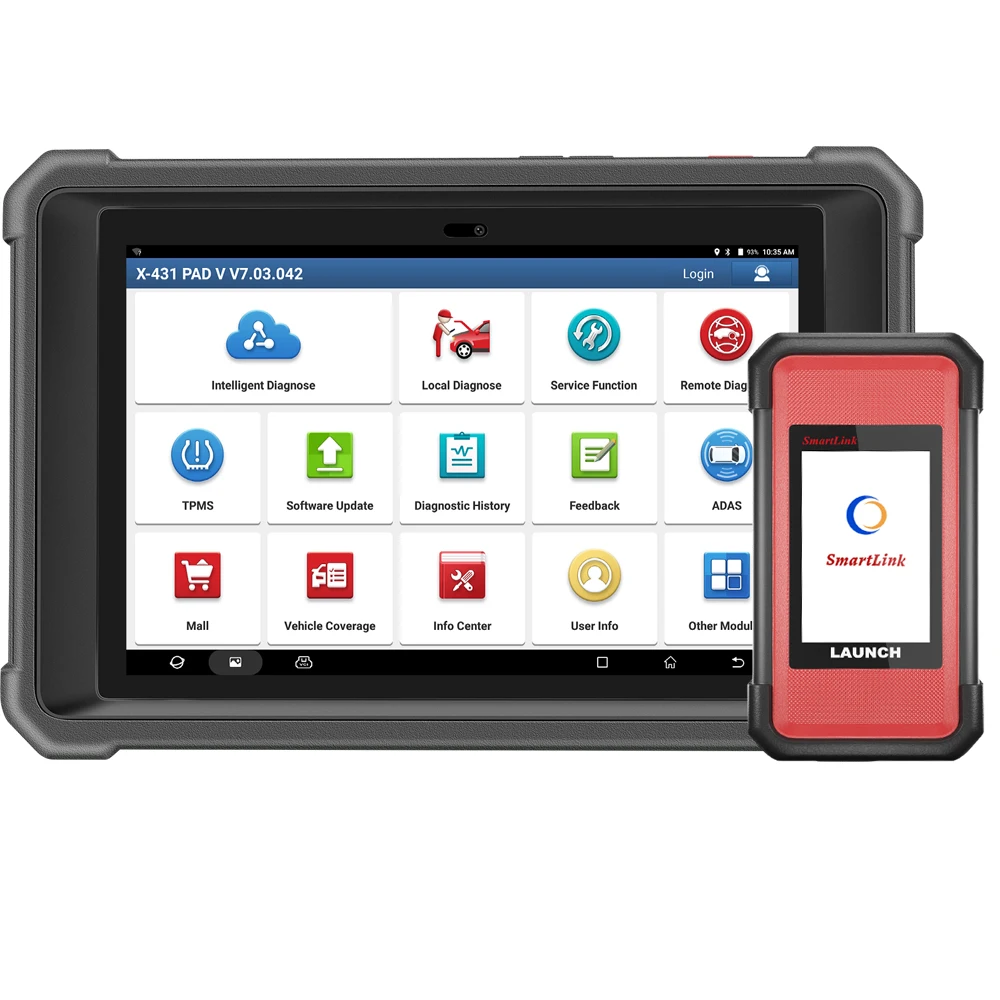

X431 PAD V is with SMARTLINK C connector with a 3.5-inch screen,with Wide Vehicle Model Coverage and Powerful Diagnostic Functions。

From Level-up Software:

1. Support J2534 Programming/ECU Online Programming for 30+ Brands, 2. Support J2534/D-PDU/RP1210/CAN FD/DOIP/HD NEW Protocols.3. Support Super Remote Diagnostics,4. Support NEW Topology Mapping/Graph, 5.Support All Diagnostic Protocols,6.Support 85+ DC9-36V HD Car Brands Supported(Need to buy HD software to use),7.Support Easy Online Coding for 99% Car Brands,8.Support Autoauth for F.C.A SGW,Gain Renault SGW diagnostic,9.Support Full Bidirectional Control, 10.Support PEV ( pure electric vehicle )Like Tesla, Cadillac etc,11.Support Full IMMO& K-ey Function,12.Support A wide range of industry-leading services, including V.A.G Guided Function, Component Matching, Programmable Module Installation, Refresh Hidden Functions, Accurate Test Data and Special Features,Power Balance, Online Calibration, Online Parameterization, and the ability to open hidden functions for Personalization.13.Support 10+ ADD-ON Modules such as ADAS, Videoscope, Mini Wifi-Printer, Oscilloscope, Tire Pressure Detector, Sensor Multimeter, Battery Test, Ignition Analysis Modules and HD Modules etc.

From Strong Hardware:

1.Support More Interfaces:USB type A/USB type C,Micro-SD, Micro-SIM slot (LTE version), etc ,which makes the signal transmission more stable.2.Enhanced Gorilla Glass, which provides exceptional damage resistance to the scratches, bumps and drops from everyday use. 3.Support QC3.0 Quick Charge Technology, the charging is not hot, the charging time is fast, the battery loss is reduced and the battery life will be extended.4. Support 3 Connection Ways:5G WIFI/USB/BT, 5.Stable Dual Frequency 2.4/5GHz Wi-Fi Communication, 6.ONLY x431 PAD V has the Docking & Charging Station,which is very convenient to charge anytime, anywhere, you don't need to worry about power off when work on outdoor diagnosis.7.More Stronger Material with IP65 Case,more suitable for the working environment of the repair shop.8.Higher pixel, x431 pad v's camera is 800*1300. 9.Larger Battery Capacity, x431 PAD V's battery is 9360mAh lithium polymer battery,our battery is brand battery and the using time of the diagnosis are longer. 10.More Fast CPU Access, wider vehicle coverage and the storage 128GB can be extended to 256 gb, x431 PAD V can reduce the memory usage, improve the running speed, and install more required software without worrying about insufficient memory.11.The Kickstand can be adjust of nearly 180 Degrees, support three modes of hanging, support and normal, you can use it even drive.12. Fast Operating System: Android 10.0 operating system and 8-core Processor, 2.OGHz CPU can work more faster, 13.More Bigger Screen: 10.1" touch screen, make the operation more clear and convenient.14.Sleek & Lightweight Tablet-style design features a capacitive touchscreen that responds to your every gesture.

Why ASE certified repair technician highly recommend LAUNMCH X431 PAD V?

NO-IP Limited Update & 2 years update & 5 Years Extended waranty: LAUNCH X431 PAD V V7.can do One-click NO-IP limited update ,wherever you are.it supports 2 years free update and we provides 5 years wa-rranty for it.

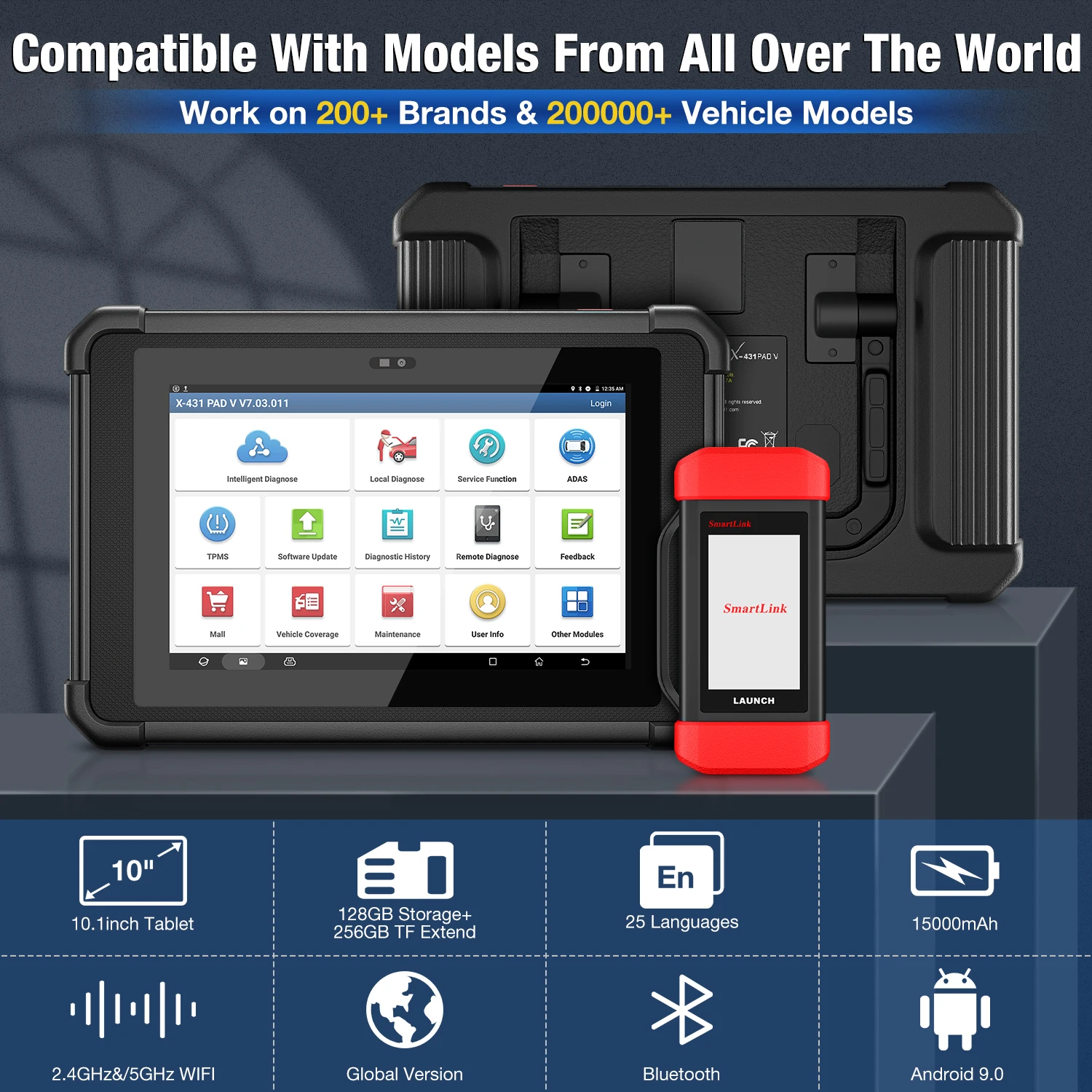

Wide Car Compatibility: LAUNCH X431 PAD V auto scan tool can support 200+ Car Brands, 20000+ Vehicles on the world. fixed more bugs and Upgraded new makes up to 2020/2021/2022 models, works on most OBDI & OBDII cars.

D-PDU/DoIP/J2534/RP1210 & CAN FD Protocols Supported.To help you cope with more models that support different interface standards, PAD V is compatible with RP1210,D-PDU, J2534 (SAE J2534-1 & J2534-2).also supports various common vehicle buses protocols, like CAN-FD, CAN,DoIP,can access more car models and modules than its peers in the market!

ECU Online Programming: Replace the existing software & firmware in the ECU and program new ECUs. Fix the vehicle drivability, fuel efficiency, power loss, fault codes, and durability issues.

ECU Coding:Rewrite the code to match the replaced component after repair/Modify some code to activate/deactivate module functions (flash the hidden functions)

Supports PEV ( pure electric vehicle ) & 24V Diesels. LAUNCH x431 pad v automotive scan tool works for gasoline vehicles & 24V DieselTrucks/buses/trailers/excavators/diesel engine/construction machinery/pick-up/etc.ONLY NEED TO purchase the HD software,no need the HD module. save more money. other launch x431 device do not supports Hybrid cars.

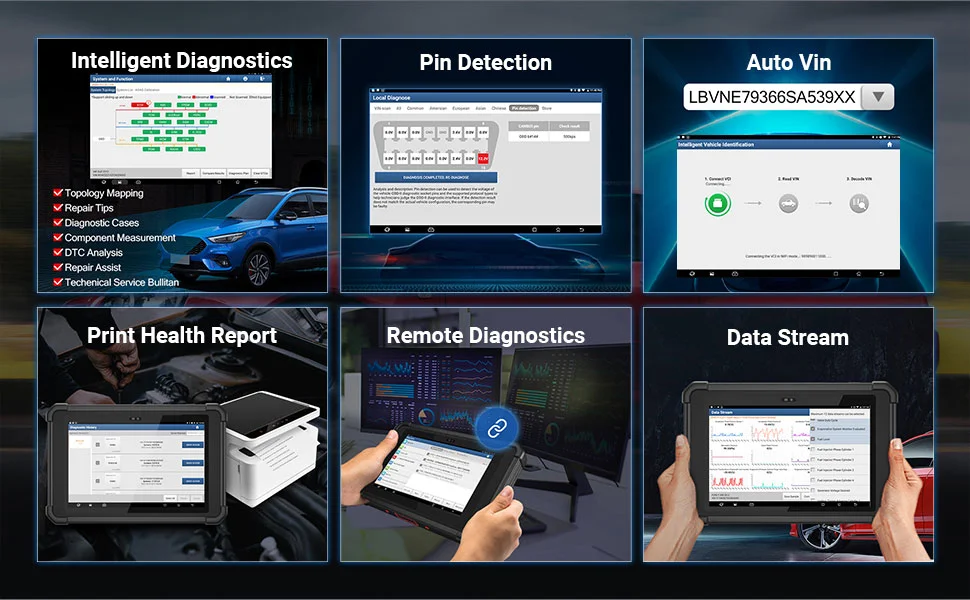

3 diagnostic modes: Intelligent Diagnostics, Local Diagnostics, and Remote Diagnostics.Support Automatically identify VIN upon connection to the vehicle for intelligent diagnosis , also supports Local Diagnostic , it supports VIN Scan , more intelligent, no need you enter the VIN manually.

Pre- & Post-Scan Reports: LAUNCH X431 PAD V bi-directional scanner supports the pre-scan and post-scan functions to tell customers what’s wrong with the car before repairs, which will be shown on the pre-scan report with DTCs and prove which DTCs on the pre-scan report are fixed.

Topology Mapping intuitive displays vehicle problem location and saves more time.
AutoAuth for FCA Vehicles:For the vehicle equipped with SGW (Security Gateway) module, you can lend a hand from LAUNCH X431 PAD V car tools to login the FCA account and perform the functions.

Dual-Wi-Fi: makes the communication transmission speed faster, transmission more stable, and the anti-interference ability stronger.

What's the advantages of programming software in PAD V compared with other product?

For Example as below:

Advantages of Volkswagen Audi:1. Large amount of online coding data. 2. The online parameter configuration data is large. 3. Online matching and calibration data is large. Advantages of B-MW: 1. Set code data to March, 2022. 2. Brush Hide feature has help mode and expert mode. 3. Support modification.
Advantages of Mercedes-Benz: 1. Basically complete before the 13 models, big data collection after the 13 models. 2. It has the initial authorization before the 13th model and the machine module and transmission module can be cloned after the 13th model. 3.The engine and gearbox modules wipe empty and clone after the 14th model .
Advantages of other brands: The function is online after the 18th model: 1. For F-ord 2. For C-hrysler 3. For F-IAT (support For Chrysler and F-IAT original factory account login (overseas) 1. All models and functions of F-ORD's original factory have been online since 2018.

ECU ONLINE PROGRAM + ECU CODING +J2534 PROGRAM (NO IP LIMITED)

With smartbox 3.0, launch x431 pad v automotive scanner can compliant to D-PDU, SAE J2534 & RP1210 to update OEM software, replace the existing software/ firmware in ECU, fix ECU parameter loss, programming new ECU and fixing software-controlled drivability issues and emission issues.it can do ecu programming for 30+ car brands,including for VW, for Ford,for Audi, for BMW, for Hyundai, for Kia, for Land Rover, for MG, for Benz, for Porsche, for Renault, for Seat, for Skoda, for Subaru and more.
reach us to get the car coverage list.

When you need to do online programming?

Unprogrammed blank module / Control module not coded
The module data record is lost and the control unit is damaged
Fuel Quality defective Firmware Upgrade
Software upgrade/part number upgrade

LAUNCH X431 PAD V V7.is an excellent and cost-effective programming tool. It has many functions that other scanner do not have, includings:

1. support for programming backup/recovery (used with x431 G3).
2. part number upgrade
3.automatic identification of part numbers
4.backup and recovery functions. 5.supports manual programming for Volkswagen/Audi/Benz
6.Audi Fule Quality Defect Firmware Upgrade
7.online code setting
8.online matching and calibration
9. online parametric configuration functions

How to Unlock the ONLINE PROGRAMMING FUNCTION?

You can downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the scan tool is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle's ECU.

Click Local Diagnose menu>Choose Porsche model>Find the online function>No online pro~gramming function on the menu>Go back to the main menu>Click other Modules>Click the Bulit-in apps above>Click files>Click lntrnal Storge>Click cnlaunch folder>Click X-431 PADV folder>Click assets folder>Drop down to find the StdCfg.ini file>Click on the “ES Note Editor” file manager>Drop down>Find OnlineFlash and Flash>Select the Edit option in the upper right corner>Start to change data>Change OnlineFlash=0 to OnlineFlash=1>Change Flash=0 to Flash=1>Save it after modification.>Go back to the diagnostic menu to get the online programming function

Why is the LAUNCH X431 PAD V scan tool more powerful than other J2534 tool?

1,The X431 PAD V online programming does not require expensive online accounts, just connect to WIFI, saving maintenance costs. J2534 programming tool needs to download OEM software and login account (annual subscription is required).
2,smartbox adopts dual WIFI communication to improve programming speed, thereby reducing the possibility of programming errors
3,When using J2534 tool, in addition to the connector, it is also necessary to consider issues such as adapting the computer, installation costs, and complete functions, which is not cost-effective.

Get Full Control Over Vehicle's ECU,Deep Diagnosis Your Vehicles!!!

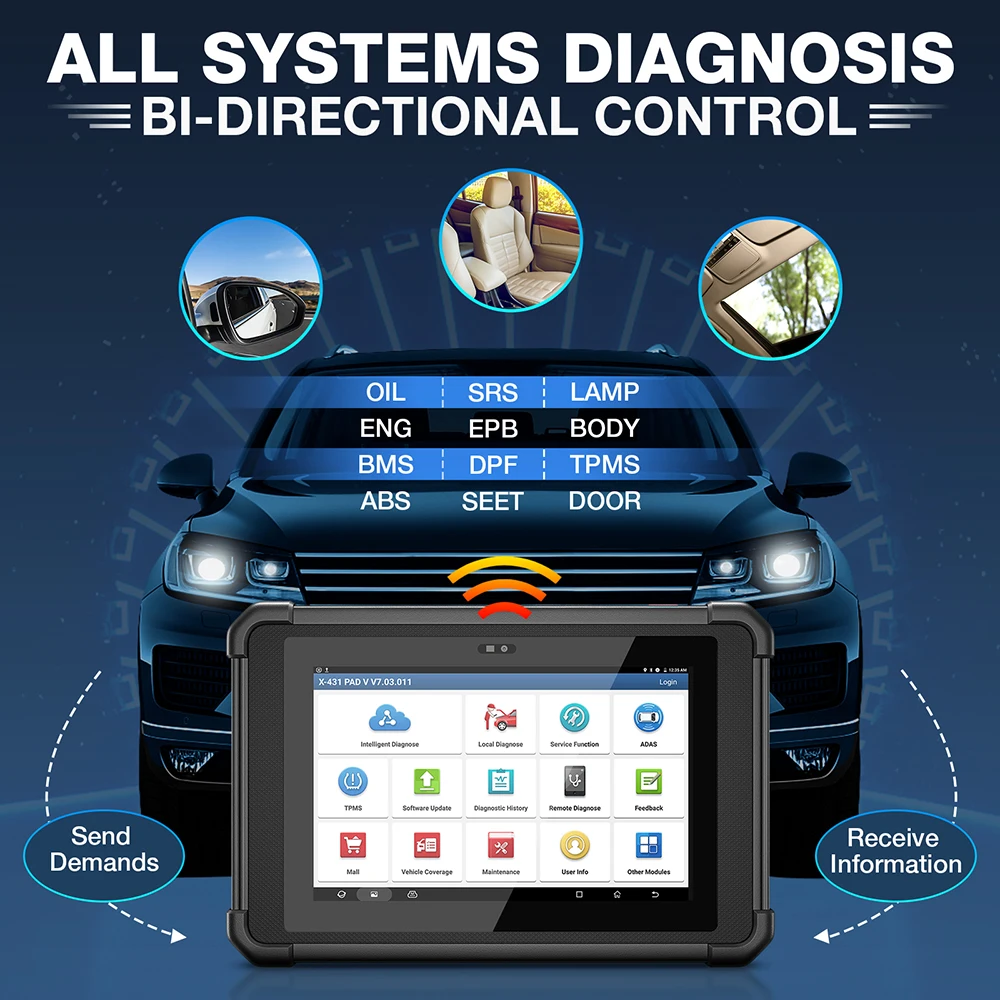

Deep Diagnosis Your Vehicles: access to ALL vehicle systems and subsystems, to perform a comprehensive scanning on ECUs:

Engines/ Auto Transmission/ Airbags/ Immobilizer/ K~ey Coding/ ABS/Cruise Control/ Instruments/ Self Leveling Suspension systems /Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Power Steering & Motor Assisted/ Power Steering/ Tyre Pressure/ Rain Sensors/ 4WD System Stabilizer/Intelligent Parking Assist etc

Full OE-LEVEL Bi-Directional Control Scan Tool(Active Test):

enables you to transmit control commands to operate the vehicle systems, without using the vehicles' controls, to verify system input and output such as:Turn on the radiator fan / Turn on interior & exterior lights / Turn on sound horn / Modulate the throttle / Open & close windows / Operate mirrors / Test door lock actuators/ Injector Test ;Turn Off ACC Lane Keeping Assist System (LKAS) ;Turn ON/OFF Front and Rear side ACM Solenoid , turning the fuel pump on and off, cycling the a/c ,clutch on and off, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test,DYNAMIC camera aiming,Vehicle level position calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, Wheel Speed Sensor Supply, PARKING BRAKE tests,Suspension Level Control Calibration( rodeo test).

Modification Car Diagnostic Tool

To improve car performance and enhance your experience as a driver or owner, you can change or add the functions by changing or adding certain modules that haven’t already in your vehicle, such as adding a satellite navigation system, courtesy lamps, car phone, parking sensors, atmosphere lights, etc.;Compatible with for Volkswagen, for Audi, for BMW, etc.

Online Parameterization/Flash Hidden Functions: has function help and expert mode, which can guide the operation efficiently

1,Activate the high-level functions: customizing the interior lights; automatic door locking at a particular speed; activating adaptive headlights; changing the brightness of the dashboard; reversing the tilt mirrors; etc.

2,Disable the annoying functions: deactivating the auto start-stop; injector buzz sounds; locking seat belt warning sounds; changing the chimes; automatic door locking at a particular speed; mirror auto folding and unfolding; etc.

Guided Function for VAG vehicles

LAUNCH X431 PAD V car scan tool provides step-by-step repair guidance for technicians.the function of guiding the use of the product to prevent the car setting caused by wrong operation.Compatible with VAG series vehicles(for Volkswagen / for Audi / for Skoda / for Seat etc.

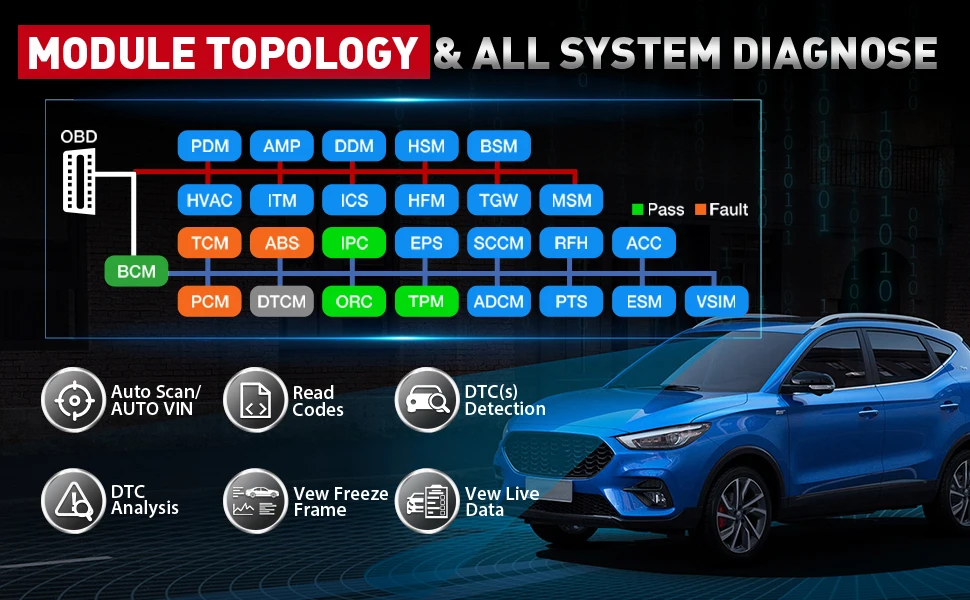

Provides Module Network Structure Topology,Better to let you know the car clearly and simple !

Color-coded topology displays all system status in one page!!!View structure of communication between modules

With topological diagram Function,it can displays the entire system through the Topology Map to glance all the modules with trouble code, which is easy to locate faults and causes. Up to 5 ways of DTC display: Easy View of All Systems.

Topology, list, separately click into the control unit, Intelligent Diagnostics details, vehicle diagnosis report, among which Topology is the newest and innovative configuration.

Display the entire system through the Topology Map to glance all the modules with faults, which is easy to locate faults and causes. Color-coded topology displays all system status in one page and structure of communication between modules. Communication between modules and status can be spotted in a glance and you can locate faults more intuitively to solve problems quickly! NOTE: Topology is not universal to all the vehicles.

Diagnostic feedback:For model software and function errors met during the use, please submit the feedback immediately. LAUNCH will response as soon as possible.

My report:View comprehensive diagnostic report, remote diagnostic report, and data stream playback.

PMI(Proarammable Module Installation)

Support PMI function, Compatible with for Ford /for Lincoin/ for Mazda etc. This function is used when you need to replace a module (replace ECU) or initialize a module.No need using the J2534 or buying a subscription.

Pre-Scan and Post-Scan function, a truly practical function for car workshops:

Step 1. Auto SCAN the Vehicle: the Auto VIN function can automatically identify the vehicle and all equipped systems, codes and code details will be listed.
Step 2. Print Pre-SCAN Report with customized with shop and vehicle information.
Step 3. Repair Vehicle: creates efficient repair plan from the start.
Step 4. Auto SCAN Repaired Vehicle: ensures no new faults were created during repair and no DTCs are present at completion.
Step 5. Print Post-SCAN Report: proves all DTCs on Pre-SCAN report are fixed.

2 years Free Update:

Support one-click upgrade of operation system, client side, car model software and firmware.We have always been committed to providing customers with more professional services and better use experience. From November 2022, we have been expanded this X431 PAD V to two-year free update, and we will continue to optimize the product in the future.

2024 Version LAUNCH X431 PAD V Diagnostic Tool Supports More than 60 special Reset functions.( Keep growing with UPDATES)

Launch x431 pad v auto diagnostic tool has been equipped with over 60 commonly used special functions to cope with the complex issues hidden in the systems after repairing.✔️Get full special functions on the diagnose menu.select diagnose menu>select your car model and year>select system> special function

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D )

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

4> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.

6> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

7> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder,so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

8> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

10> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

12> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

13> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

16> Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.

17> Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.

18> Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.

19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

20> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

21> Ac System Initialization

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

22> High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.

23> Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

24> Language Change

This function is used to change system language of vehicle center console.

25> AF Reset

This function is applied to set or learn airlfuel rate parameters.

26> Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

27> StoplStart Reset

This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

28> Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it isreplaced or repaired.

29> Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

30> Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.

31> Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

32> ECU Reset

33> FRM Reset

34> Clutch Reset

35> Gate Reset

36> Turbo Reset

37> RLsensor Reset

38> Program Reset

39> TPMS Reset

…….

NEW ADDED 6 RESET FUNCTIONS ON Nov,2022: ECU RESER ,FRM RESET, CLUTCH RESET, GATE RESET, TURBO RESET, RISENSOR RESET

NEW OPTIONAL FUNCTIONS (option functions):

X431 ADAS Mobile/PRO:When the adaptive cruise control module (ACCM), radar sensor or front bumper has been replaced or does not meet the maintenance calibration requirements, you need to perform "radar calibration" on your vehicle.
VSP600-Videoscop:helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment.
LAUNCH X431 TSGUN:a professional tire pressure diagnostic tool that integrates TPMS sensor activation, reading, learning and pro-gramming. It activates reading tire pressure information by receiving signals at low or high frequencies. Check for abnormal conditions in time to prevent tire pressure problems.
X-PROG & X-PROG3 Immobilizer:turn this X431 diagnostic scanner into a capable IMMO service tool, providing fast, easy, and intuitive k-ey pro-gramming for VAG group vehicles with 2/3/3.5 gen. IMMO, and most Asian cars with low-level antitheft systems; also to have completed IMMO & K-ey Pro-gramming (read & write 1200+ EEPROM and MCU chips, etc.) for VW/Audi/Skoda/Seat models manufactured after 2008 with 4/5/5.5/6 gen. IMMO system.
X431 PRINTER:Print out diagnostic data/ reports
Oscilloscope: to quickly acquire the circuit signal, and slowly display the waveform for better data analysis.providing you an insight to the inner workings of a vehicle’s electronic circuits. You can one-click auto setup of voltage scale and time base, Reads and displays electrical signals in high resolution waveforms, Records and plays back waveform data,Features color coded 4-channel control panel.other scanners can't be extended this function.
BTS360 Bluetooth Battery Tester: to get a thorough test of the vehicle battery.

IMMO Keys

With the IMMO Keys function, LAUNCH X431 PAD V can add new keys, disable/clear information of the lost vehicle keys, and program the replacement key fob for most Asian and American vehicles, which come with low-grade anti-theft systems. Note: this function varies on the car model and the year.

PIN Detection Function

Pin detection can be used to detect the voltage of the vehicle OBD-II diagnostic socket pins and the supported protocol types to help technicians judge the OBD-II diagnostic interface.if the detection result does't match the actual vehicle configuration,the corresponding pin may be faulty.

High-end Configurations

High-end Configurations
Designed with Android 7.1 OS, Qualcomm 8-core processor, 35568mwh Battery,10.1 inch 1920*1200 sunlight readable screen (Gorilla Glass),Docking & charging station included with QC3.0 Quick Charge technology.
2.4GHz&5GHz Dual-Frequency Wi-Fi,free adjustment of nearly 180 degrees; support three modes of hanging, support and normal.
Soft rubber corner protector.

Support commercial vehicle and passenger car diagnose, Support J2534, CAN FD, DoIP.
Wide mode coverage, powerful and a large number of diagnostic functions, and accurate test data.
Support 2 Years Free Update.

Supports 85 HD Brands

You can turn your X431 scan tools into full function heavy duty truck diagnostic tools,working on both heavy-duty(Class 4 through 8) and medium-duty trucks(Such as heavy trucks, city buses, bulldozers, excavators, etc.).it works for 85 HD brands.ONLY NEED TO purchase the HD software,no need the HD module.

Guided Functions for VW and for Audi Brands

X431 PAD V has guided functions among all online products of LAUNCH.

Guided Functions show all specific operating instructions step by step, and automatically run the instructions to do the resetting, matching, coding etc.

You just need to follow the instructions and click complete/continue to do it.

It is a good assistant helping you to find a way during the car repairing.

More Different Functions are Waiting for You To See!!!

X431 FIX Database:

Provides HaynesPro Data (you won't find this in any other tools) professional maintenance guidance for passenger car and light truck, which helps users to diagnose cars precisely with references. (Note:You can buy it in the Mall Service!)

X431 Remote Diagnose:

If you need any remote help, give your mechanic access to the remote expert. Simply offer him the access code and he can perform one-for-one remote diagnose using any web browser (platform: remoteddiag. x431 .com), or via an X431 scanner. Instead of simply using Team Viewer remote for other products, mechanics can actually diagnose vehicles even from thousands of miles away,More faster, More easier, More stable, and No subscription. Supports Remote Diagnose service between devices such as x431 series, or via mobile phone,tablet and computer, if you have any vehicle issue that you can’t figure out, it can assist you to diagnose an abnormal vehicle wherever you are.

Support New Energy Vehicles:

Supports all electronic control systems of 12V new energy vehicles, can diagnose the faults of the electronic control systems of most new energy vehicles in Europe, America, Asia and , and can realize vehicle fault diagnosis of all models and systems.(Note: it need to extra fee to open).

85 HD Brands Heavy-Duty Truck Supported:

You can turn your X431 pad v into full function heavy duty truck diagnostic tools,working on both heavy-duty(Class 4 through 8) and medium-duty trucks(Such as heavy trucks, city buses, bulldozers, excavators, etc.). (Note: Need to purchase the HD software,no need the HD module.)

Mall Service:

LAUNCH X431 PAD V can support some motor software,but you need to extra purchase in the "MALL" SERVICE. (Note: You need to buy diagnostic mainline to use the function of the corresponding motorcycle model.)

5G WiFi Communication:

Automatically connects within 20-30 meters, far better than BT connection in transmission rate.

IMMO Function:

LAUNCH X431 PAD V can add new k-eys, disable/clear information of the lost vehicle k-eys, and program the replacement k-ey fob for most Asian and American vehicles, which come with low-grade IMMO systems. Note: this function varies on the car model and the year.

PIN Detection:

P-in detection can be used to detect the voltage of the vehicle OBD-II diagnostic socket pins and the supported protocol types to help technicians judge the OBD-II diagnostic interface.if the detection result doesn't match the actual vehicle configuration,the corresponding pin may be fault.

Data Record/Playback/Graphing:

1.Customer can record the live data stream for up to 50, simultaneous, PID's. Once these have been recorded they can be played back in text format and/or graph format. 2. Playback supports 12 graphs (independent). Playback timeline can be scrolled, paused, viewed, etc. 3.There's quite a bit of power in the graphing. launch x431 pad v support up to 12 live data stream analyze in one graph, and you can compare different data at the same time, help you solve problem more quickly.

Share/Print Health Report:

X431 PAD V launch scan tool auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance. And the diagnostic report can be shared and printed when connected to WIFI.The diagnostic report can help you save time to analyze the problem, it is very great for repair shop , mechanics can print out the vehicle report for customer.

This Diagnostic Tool Presents The Live Data Stream in 3 Modes:

a. Numbers and lists (default); b. Wave patterns (max. 12 channels in one screen); c. Merged graph (max. 4 data can be merged) for you to quickly identify if the data are in normal conditions, ranges or not

OBDI&OBDII Connectors and Cables ,Cover Almost All Vehicles In the World:

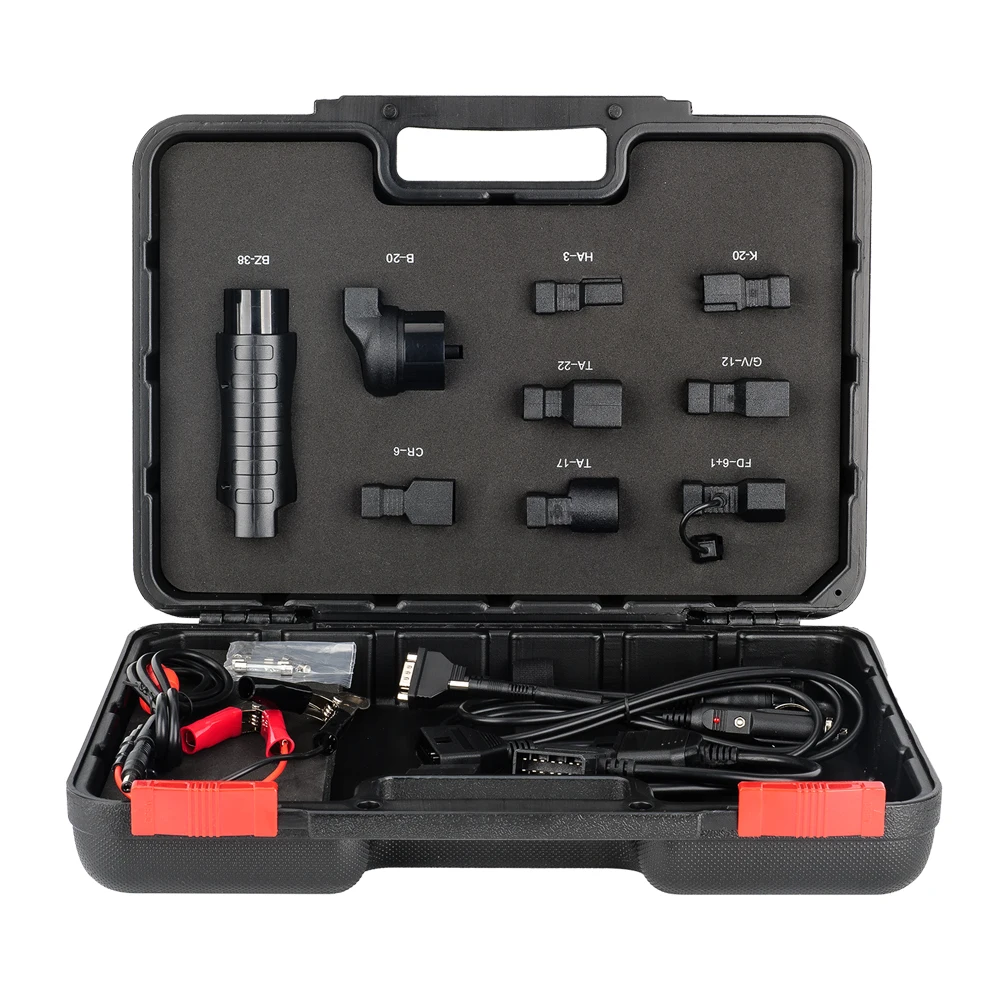

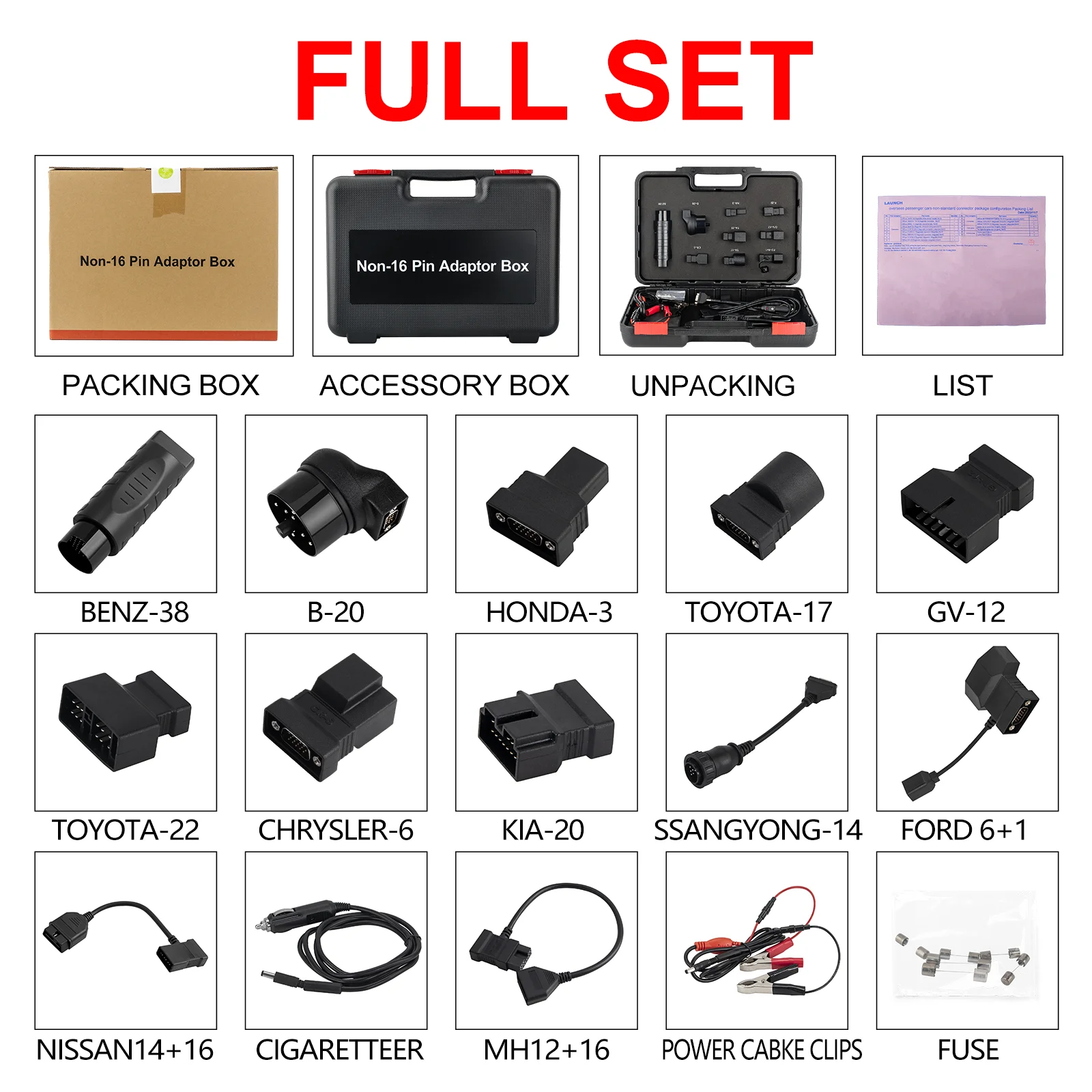

LAUNCH X431 PAD V automotive scanner comes with OBDII-16 EXTEND CABLE,POWER CABLE CLIPS,BENZ-38,B-MW-20,C.HRYSLER-6,H.ONDA-3,F-ORD-6+1,G.MVAZ-12,Xigeartt lighter cable,T.OYOTA-17,H.ONDA-3,6-NS,K.IA-20,T.OYOTA-22,S.UZUKI-3,USB,UNIVERSAL-3,OBD1 ADAPTER,DATA CABLES,CN PLUG,NISSAN-14+16,G-M&VAZ-12,FIAT-3,SSANG YONG-14, MITSUBISHI HYUNDAI-12+16,DAIHUATSU-4,SSANG YONG-14,AUDI-4 Adapter,F-IAT-3,SSANG YONG-14, M-ITSUBISHI HYUNDAI-12+16,D-AIHUATSU-4,SSANG YONG-14,AUDI-4,SSANG YONG-20,DAEWOO-12.

LAUNCH PAD V support Car list

Chinese cars: for Beijing Automobile, for BAIC Magic Speed, for Dongfeng Fengshen, for GAC Trumpchi, for GAC Mitsubishi, for Haima, for Mustang, for GM, for Beijing Jeep, for Beijing Hyundai, for BYD, for Changan Suzuki, for Dandong Shuguang, for Dongfeng Fengxing, for Hainan Mazda, for Geely, for JAC ,for Jiangnan Alto, for Lifan Motors, for Nanjing Iveco, for Chery, Qingling, for Shanghai Volkswagen, for FAW-Volkswagen, for Zhengzhou Nissan, for Zhidou, for Zotye, for ZTE, etc.

Asian cars: for Honda, for Acura, for Toyota, for Lexus, for Mazda, for Nissan,for Infiniti, for Hyundai, for Kia, for Ssangyong, for Daewoo, for Isuzu, for Daihatsu, for Suzuki, for Mitsubishi, for Subaru, etc.

American cars: for Chrysler, for Dodge, for Jeep, for American Ford, for Lincoln, for GM, for Buick, for Cadillac, for Chevrolet, etc.

European cars: for Aston Martin, for BMW, for Rolls Royce, for Mercedes-Benz, for Maybach, for Peugeot, for Volkswagen, for Bentley, for Bugatti, for Ferrari, for Fiat, for Abbas, for Lancia, for Romeo, for Renault, for Maserati, for Lamborghini, for Citroen, for Audi , for Porsche, for Volvo, for Land Rover, for Jaguar, for Rover, for Opel, for Skoda, for SEAT, for Mini, for Saab, etc.

What's in the box

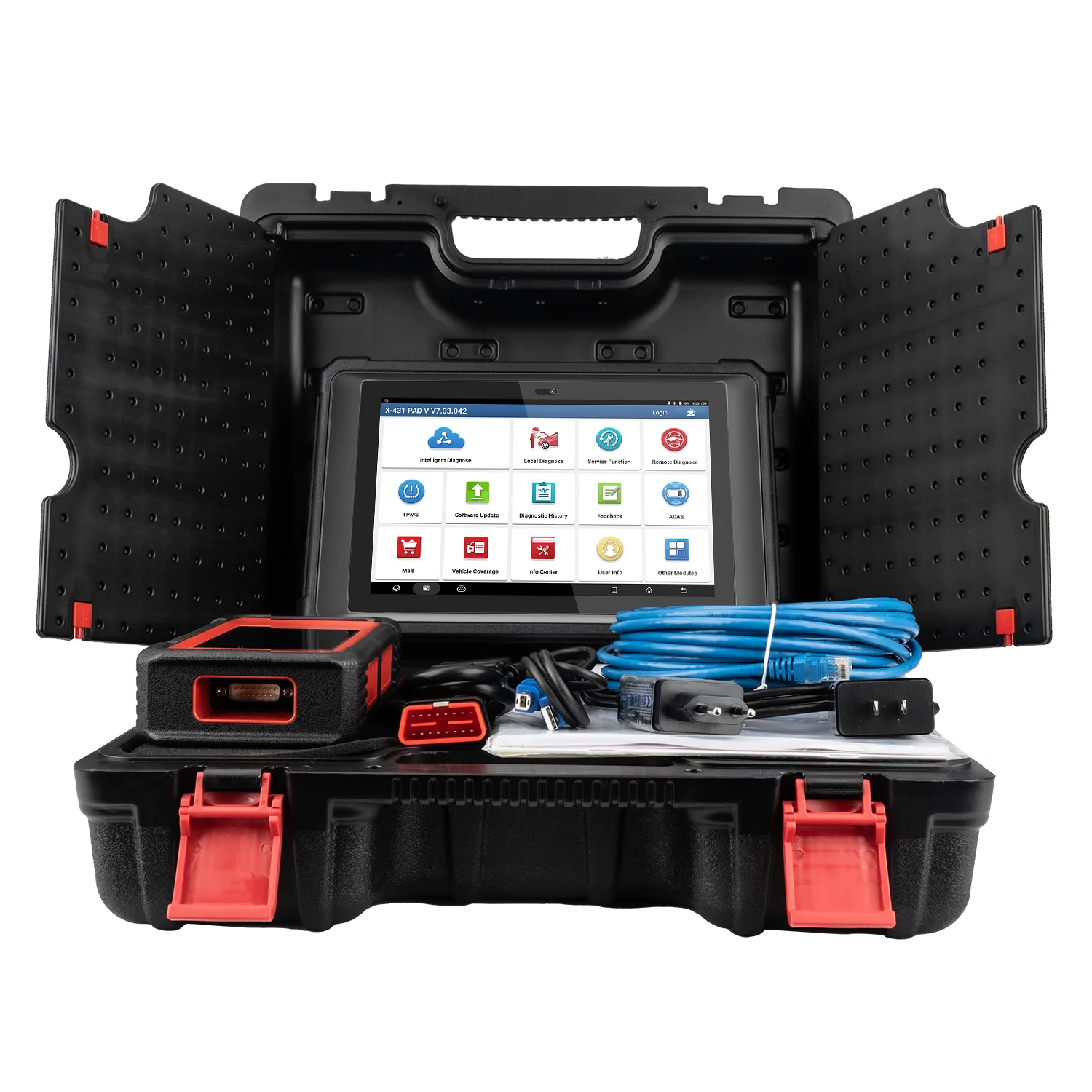

1 x NEWEST X-431 PAD V Main Unit

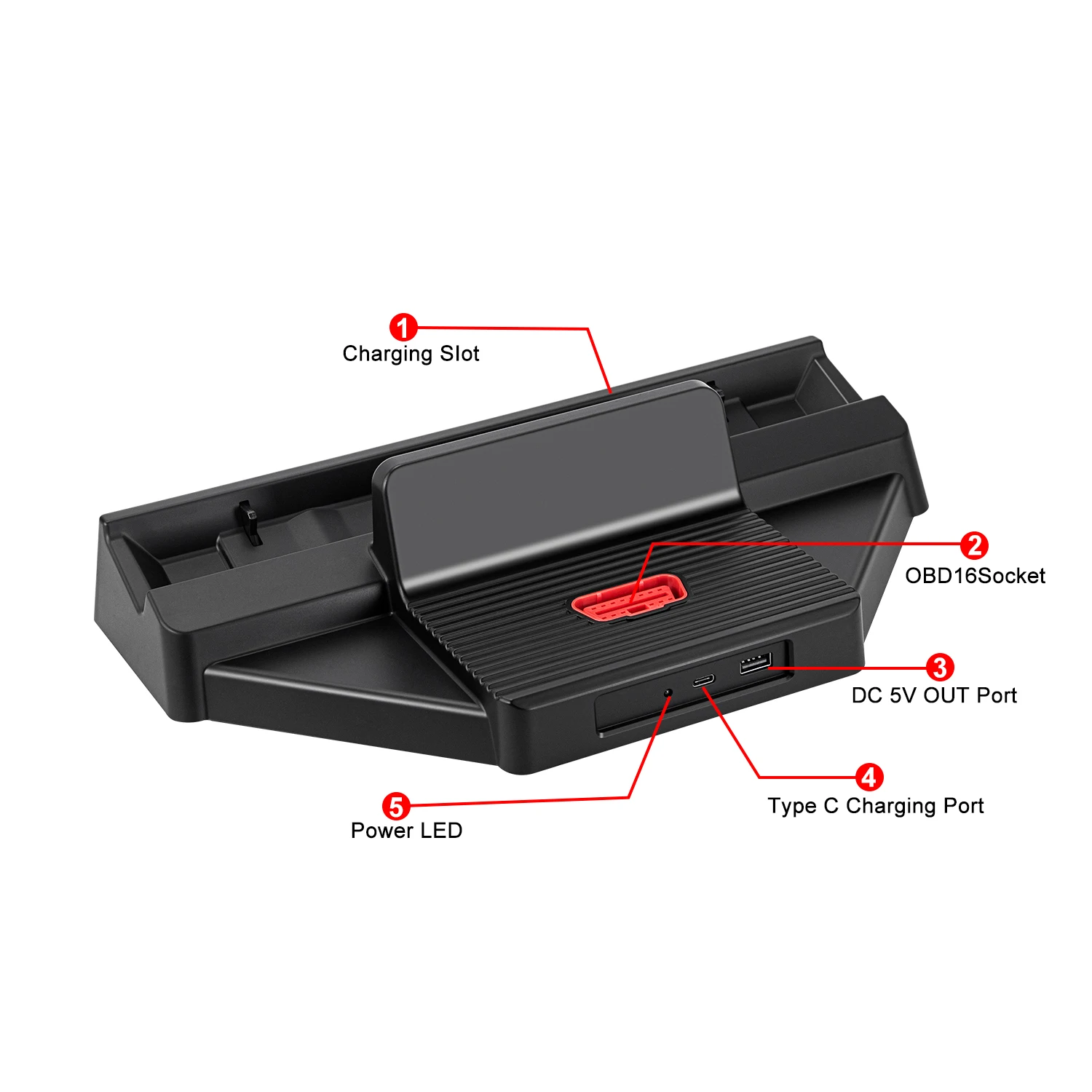

1 x X-431 PAD V Charging Dock
1 x NEWEST Smartlink C Diagnostic Connector;MINI-HDMI HDMI line

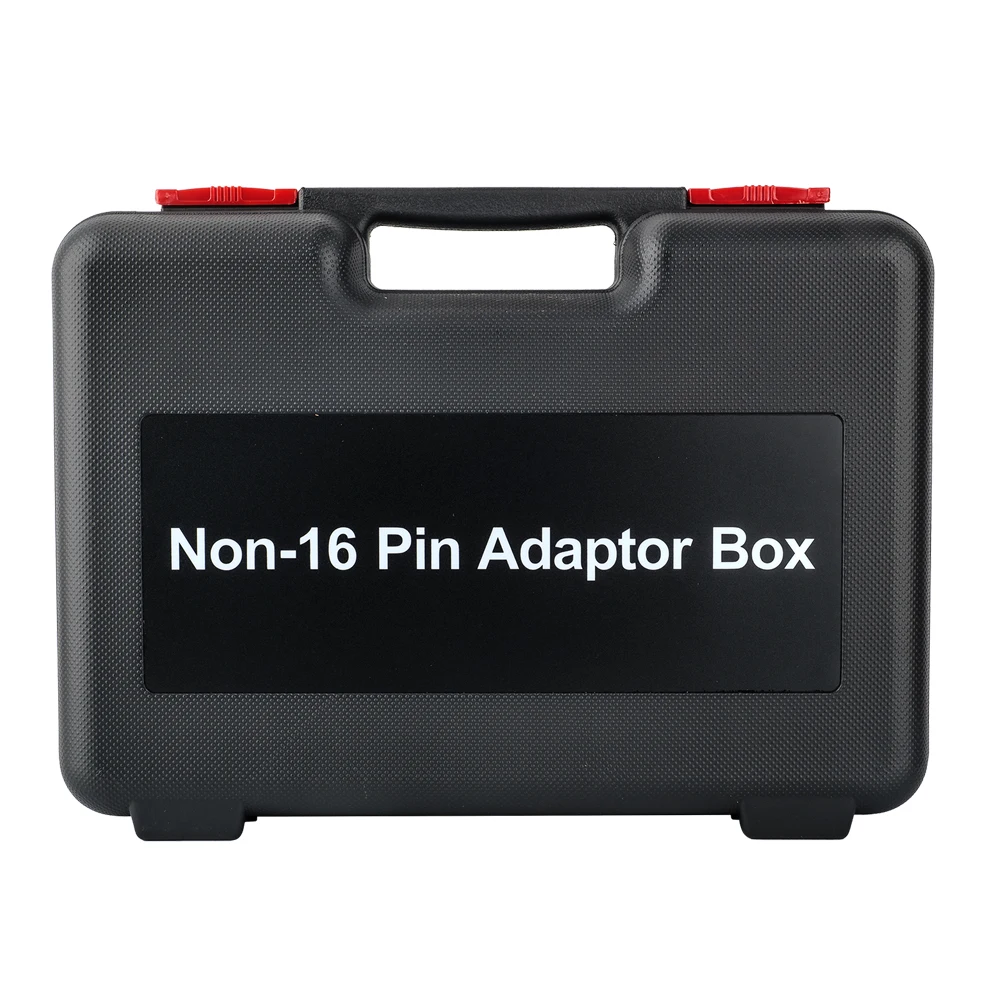

Many OBD1&OBD2 Adaptor BOX transfer line
Type-A to Type-C USB Cable;Power Adaptor

Additional information

Weight 12.500 lbs
Dimensions 45 × 43 × 40 in
Brand Name

LAUNCH

Origin

Mainland

High-concerned chemical

None

Wireless Support

Bluetooth

Is Batteries Included

Yes

External Testing Certification

ce

Use

Not Telecommunication

Certification

RoHS, CE

Item Type

Engine Analyzer

Display Size

10.1 inches

Special Features

Bluetooth, Wifi

Software Version

NEW

Display Resolution

1920*1200

Model Name

X431 PAD V PAD5 ELITE

Item Weight

10

Voltage

V

Software Update

Yes

Electronic

Yes

Communication Interface

Bluetooth, Wi-fi

Item Name

LAUNCH X431 PAD V elite

Operating System

Android 11

Update

2 Years Free Update

Running memory & storage memory

4GB RAM & 256G ROM

Screen Size

10.1 inch sunlight readable screen

Cameras

500W front, 800W Back

Supports extended function 1

BST360 Battery Tester (Buy extra)

Key Programming

Work with X-PROG 3 (Buy extra)

Supports extended function 2

VSP600 Videoscope (Buy extra)

Supports extended function 3

I-TPMS / TSGUN TPMS TOOL (Buy extra)

Supports extended function 4

Wifi Printer (Buy extra)

More Feature Support

waiting for your discovery…

Warranty

3 years

for Renault SGW

Yes (Need you pay extra)

Remote diagnose

Yes

5G network communications

Yes

Full Special 60+ Functions

Yes

Full Bi-Directional Control

Yes

All System Diagnosis for Deep Inspection

Yes

DIOP & CANFD

Yes

Topology Map

Yes

J2534 PROGRAM

Yes

ECU CODING

Yes

ECU ONLINE PROGRAMMING

Yes

Support X431 FIX Database

Yes(Pay extra, 1915 USD per year)

Support HaynesPro

Yes(Pay extra, 1915 USD per year)

19 reviews for LAUNCH X431 PAD V Elite ECU Coding Scan Tool,Topology Map,Full System Diagnostic Scanner,Full Bi-Directional Control & 60+ Reset

  1. B***k

    The diagnostic computer arrived very quickly as promised by the seller. Very well packaged, with no damage at all.

    So far, I’ve only managed to initially configure the equipment and test it on one car, but it works very quickly and looks super solid! I am satisfied 😉

    I recommend it!

    Color: 2 Years Add XPROG 3 Ships From: Mainland Language: Euro UK RU Version

  2. j***r

    Super fast shipping, tested it and it’s absolutely amazing, super quick, tried it in two vehicles and it’s perfect.

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  3. a***r

    The pad v supports so many car brands,really worth to buy.

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  4. k***r

    Very good product and works very well. Seller is great. Very good purchase.

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  5. M***r

    I’m very satisfied. Great product, fast shipment !

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  6. p***r

    Great tool and amazingly quick delivery.

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  7. y***r

    Fast shipping, great product

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  8. e***r

    Fast delivery. Works fine. I am very happy.i am recommend.

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  9. c***r

    This is the best scan tool i have used.

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  10. Shopper

    Color: 3 Years Update Ships From: Mainland Language: Euro UK RU Version

  11. Shopper

    great 🙂

    Color: 3 Years Update Ships From: Mainland Language: Euro UK RU Version

  12. b***r

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  13. z***r

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  14. n***r

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  15. l***r

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  16. k***r

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  17. g***r

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  18. t***r

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

  19. r***r

    Color: 2 Years Update Ships From: Mainland Language: Euro UK RU Version

Add a review

Your email address will not be published. Required fields are marked *

Shop More Than $100 to get Free Shipping Shop Now
0

Shopping Cart
0

You have successfully acquired free shipping. Cart
