4pcs Connecting Rods ARP2000 for Mazda Speed 3 MZR 2.3L DISI Turbo 5.927″ Shot peen Floating En24 TUV Piston PIn



Application：

For Mazda Speed 3 MZR 2.3L DISI Turbo

For Mazda 3 MPS 2.3L（ 2006-2013 ）

For Mazda Speed 3 2.3L（ 2006-2013 ）

For Mazda Speed Atenza 2.3L（ 2006-2013 ）

For Mazda Speed 6 2.3L（ 2006-2013 ）

For Mazda 6 MPS 2.3L（ 2006-2013

For Mazda CX-7 2.3L（ 2006-）

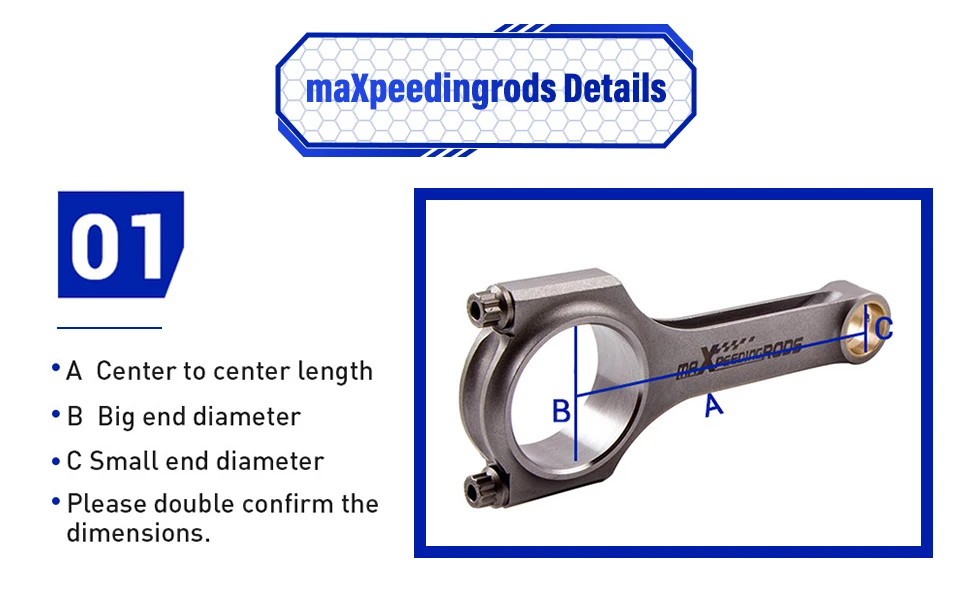

Dimensions:

Center to center length:150.55mm/5.927"
Big end diameter:55.03mm/2.165"
Small end diameter:22.5mm/0.886"
Big end width:21.82mm/0.859"
Small end width:21.82mm/0.859"

Specification:

*Type: Forged 4340 aircraft chrome moly quality steel for racing

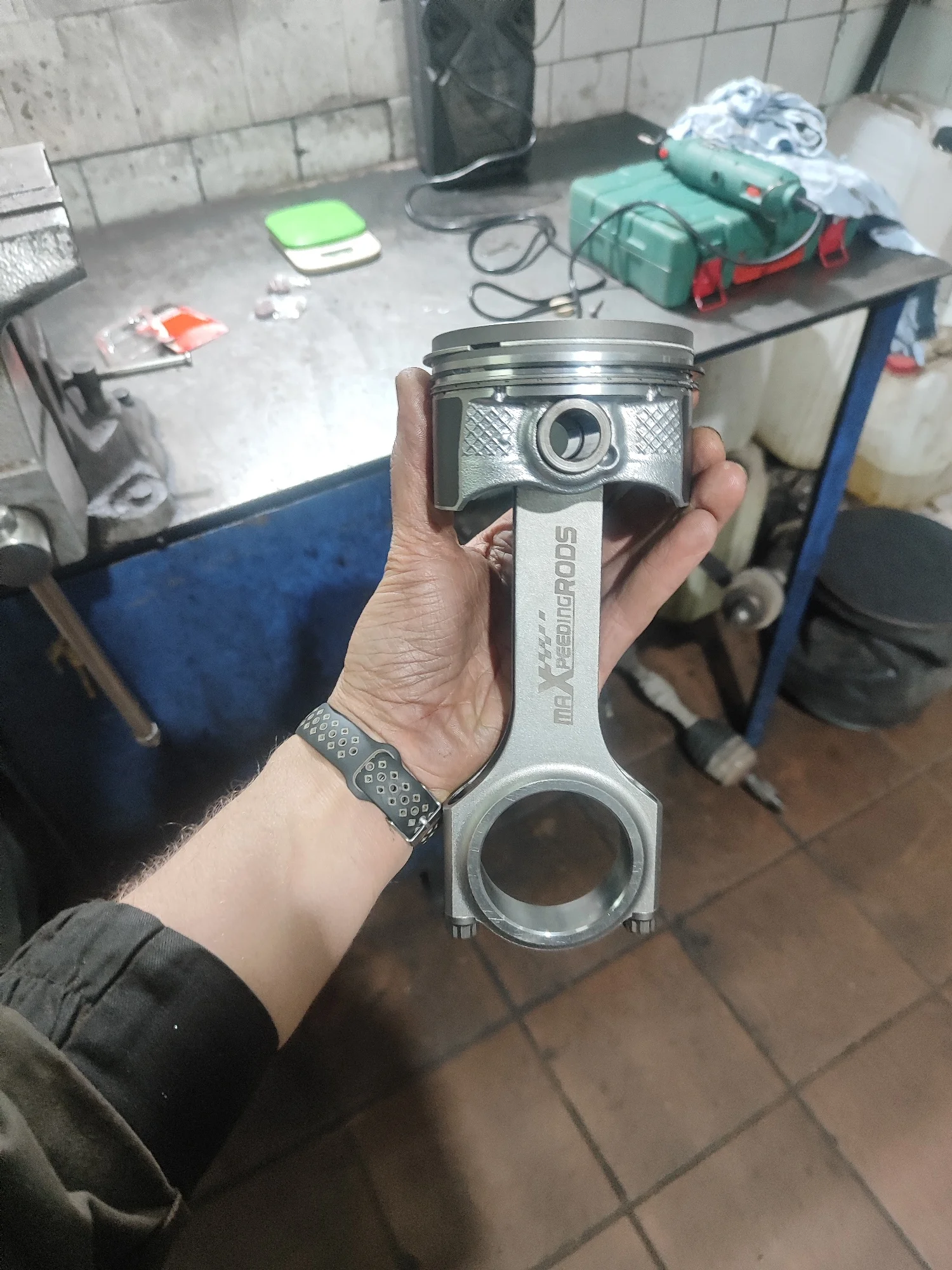

*H-beam Conrods Quantity: 4 Pieces as showing in picture

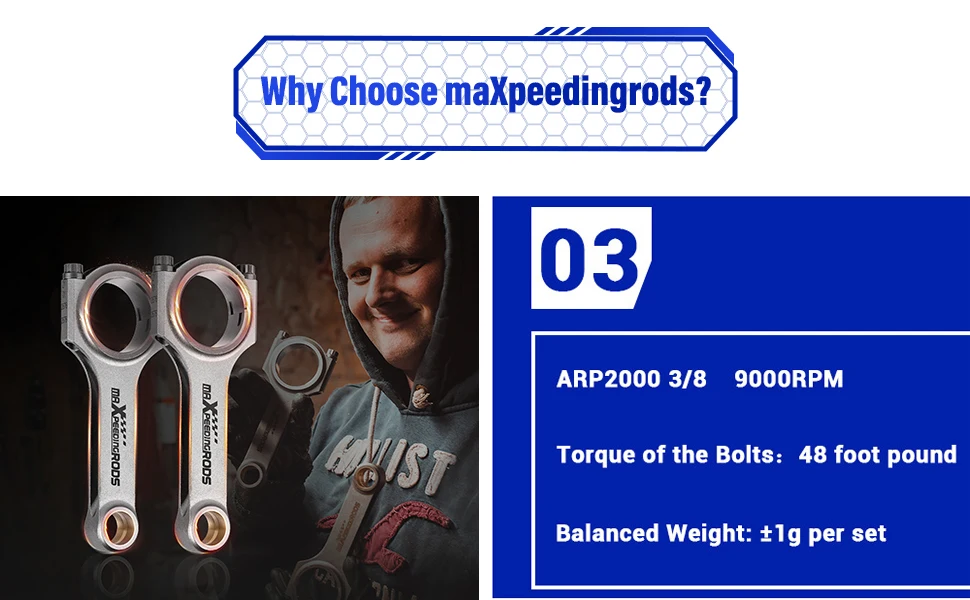

*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28cm*21cm*10cm

Features:

1. TüV Certification Con Rods；

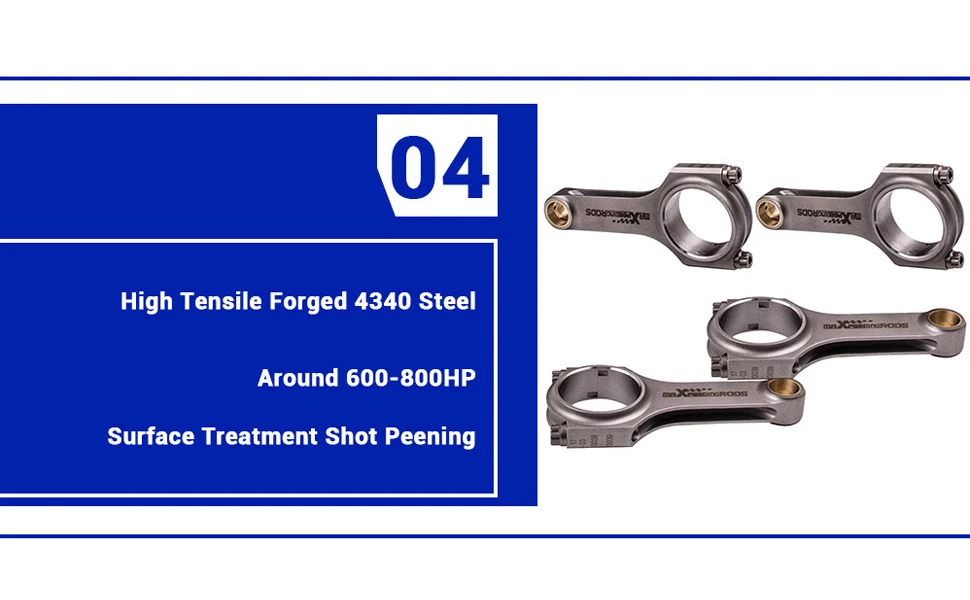

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

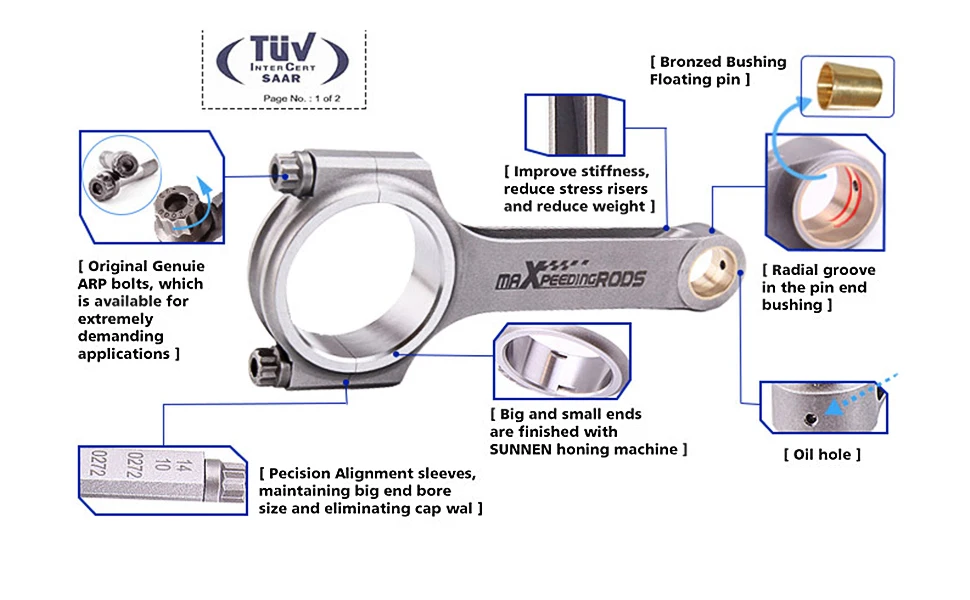

4. H-Beam design reduces weight without compromising strength；

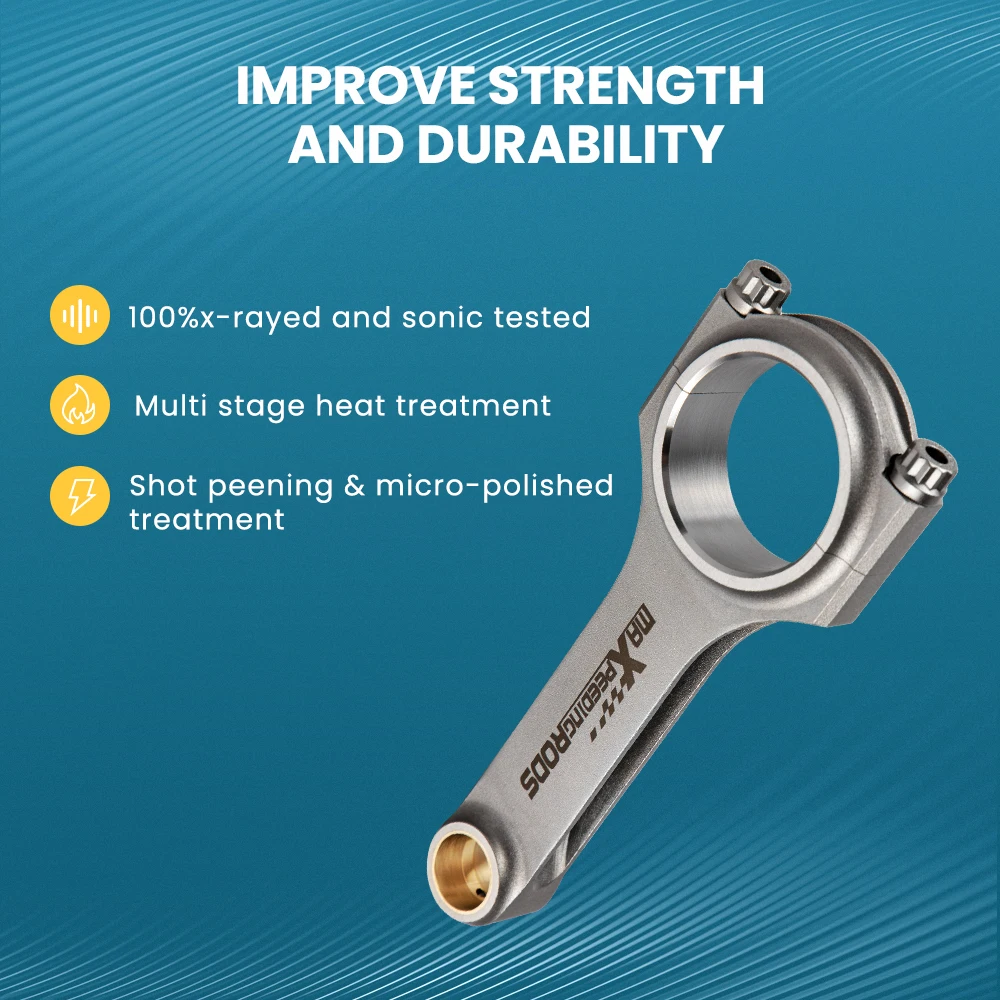

5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note:

*Professional installation is highly recommended ；
*Custom Service:If there’s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
