2025 JDiag M400 Motorcycle Diagnostic Scanner Diagnose ABS System Battery Tester EFT Code Clean For Kawasaki Yamaha Honda KTM

Follow our shop get discount up to 10%

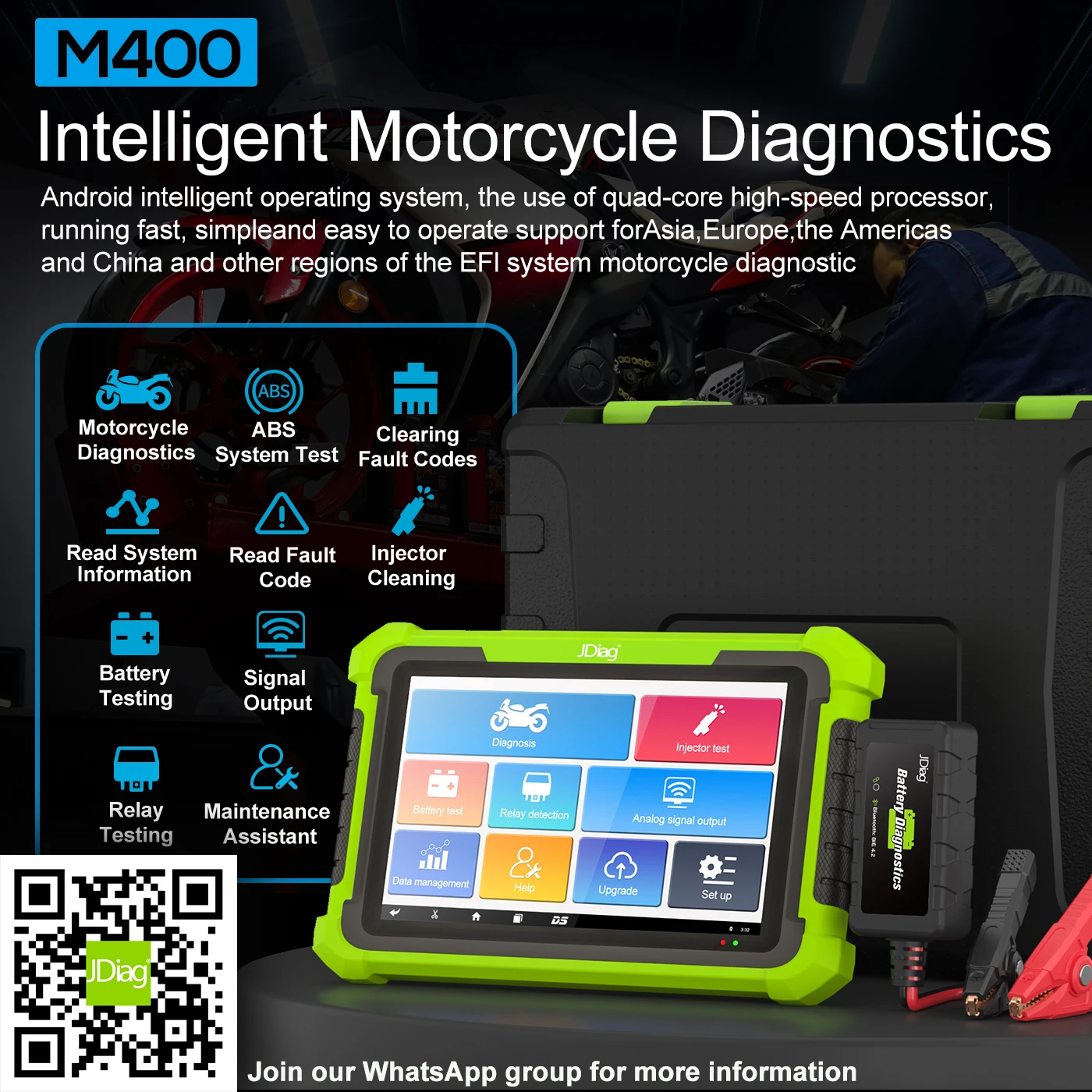

Intelligent Motorcycle Diagnostics

2025 Jdiag New M400 is based on Android 10 operating system, using 4-core high-speed processor.extremely fast and smooth; equipped with 8-inch TFT capacitive touch screen, simple andeasy to operate. lt can detect electric control system faults of most motorcycle models inAsia, Europe, America and .
1. Diagnostic Functions: Read Fault Code, Clearing Fault Code, Read ECU version information, Viewing Data Streams, CO ldle Speed Adjustment, Freezing Data.
2. Special Functions: ABS System Test, ECU Reset, Injector Test, Battery Test, Relay Test, Analog Signal Output, Help And So On.

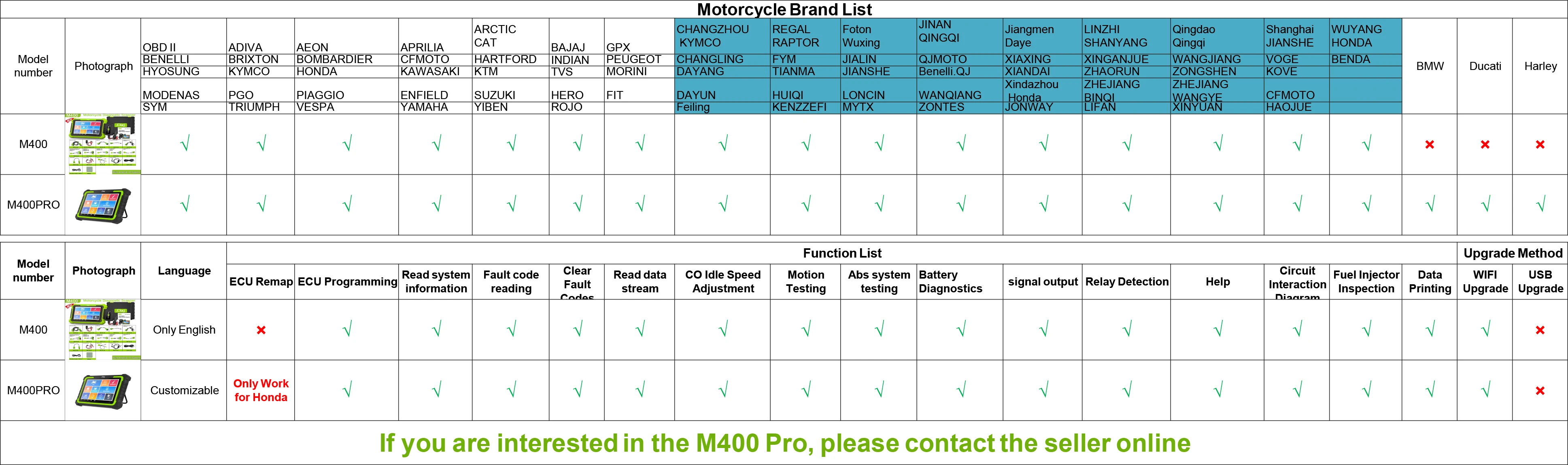

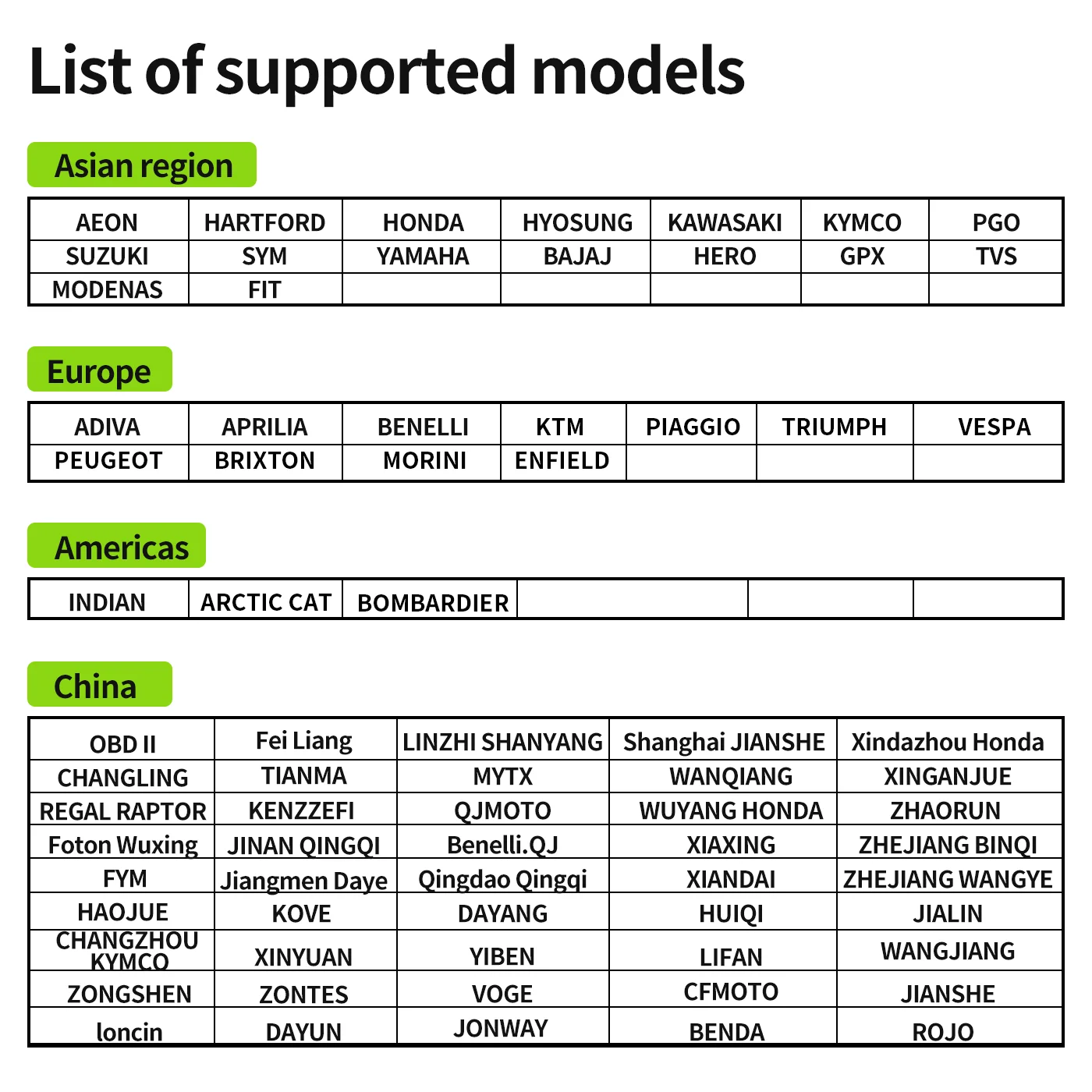

Support Vehicle Lists:

ADIVA
AEON
APRILIA
ARCTIC CAT
BAJAJ
BENELLI
BRP
BRIXTON
HARTFORD
HONDA
HYOSUNG
KAWASAKI
KTM
KYMCO
PGO
YAMAHA
PIAGGIO
ROYAL ENFIELD
SUZUKI
SYM
TRIUMPH
VESPA

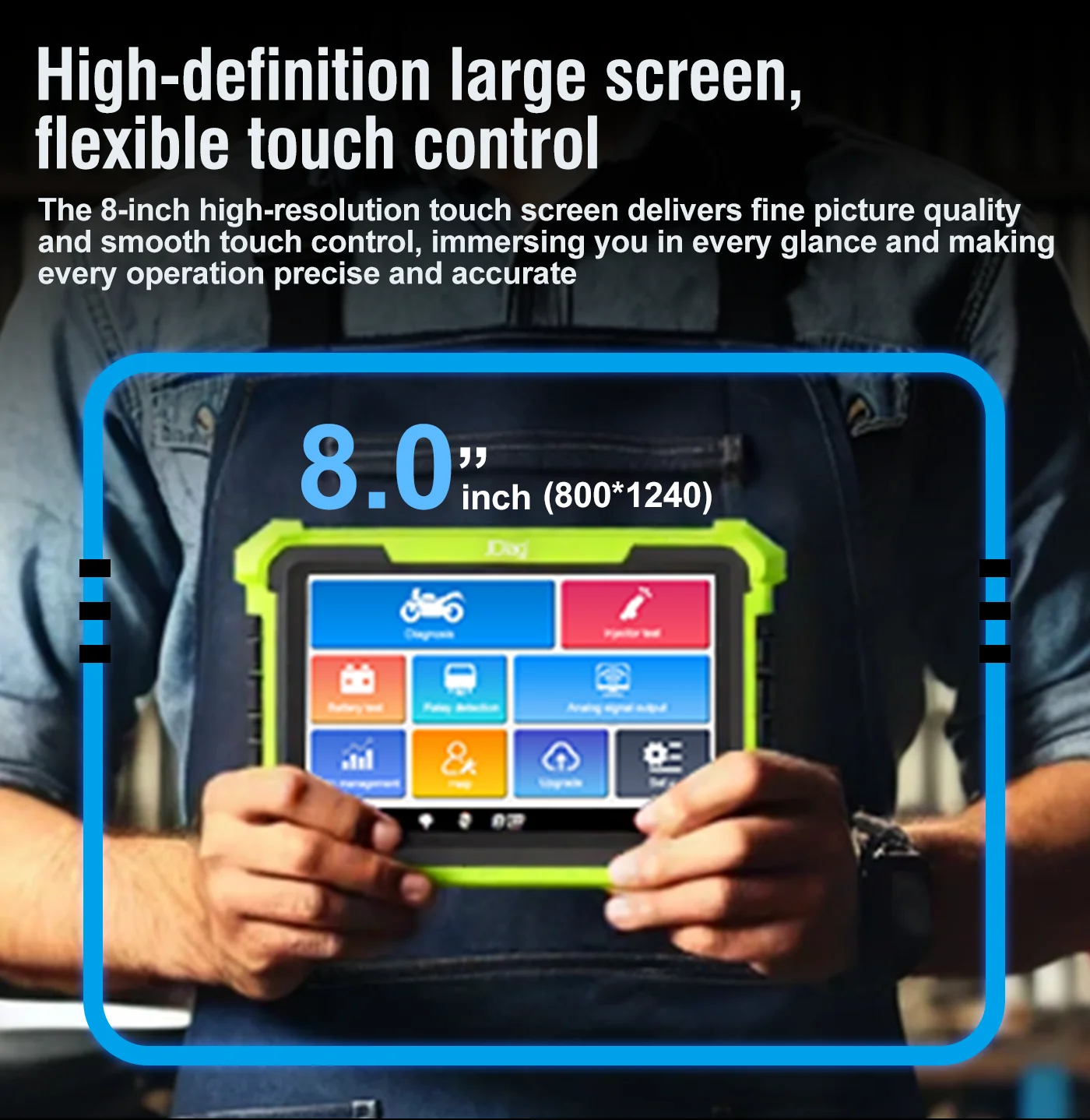

High-definition large screen, flexible touch control

The 8-inch high-resolution touch screen delivers fine picture quality
and smooth touch control, immersing you in every glance and making every operation precise and accurate

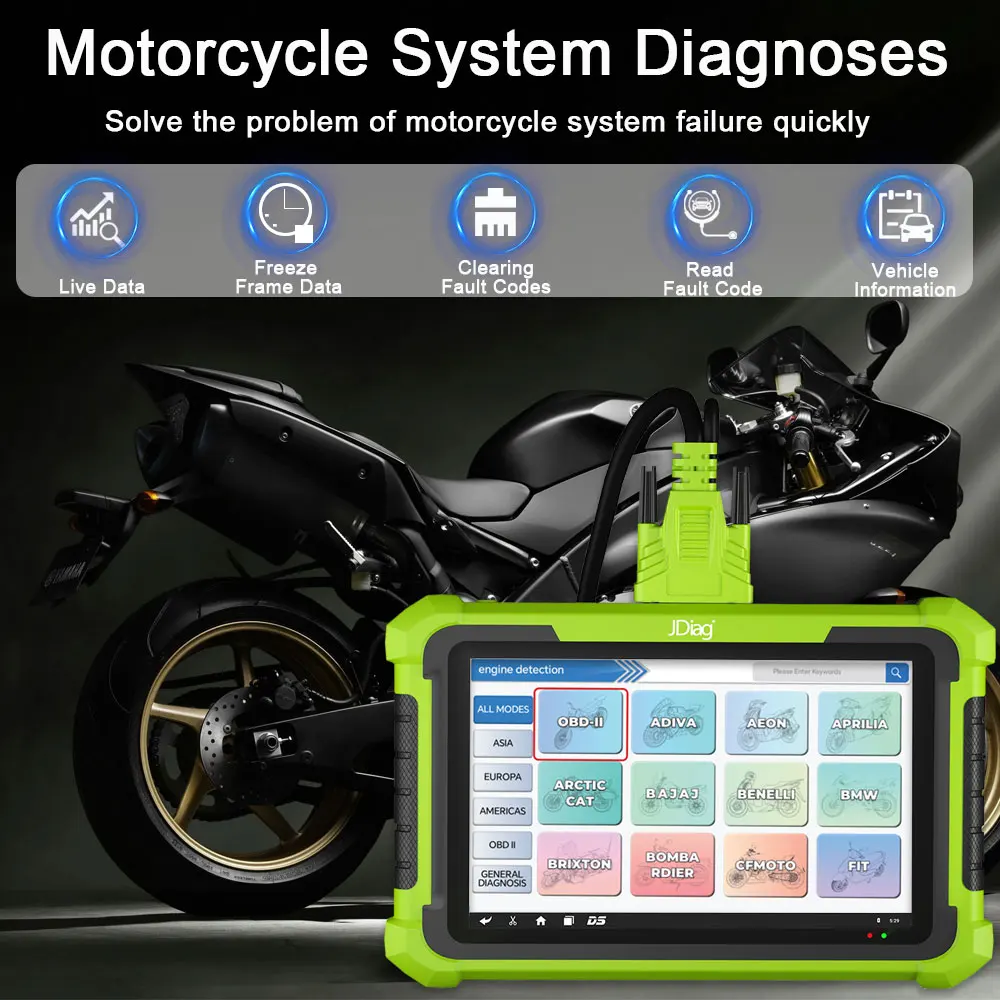

Intelligent diagnostics, worry-free riding

Supports real-time data stream viewing, reading, and clearing of fault codes

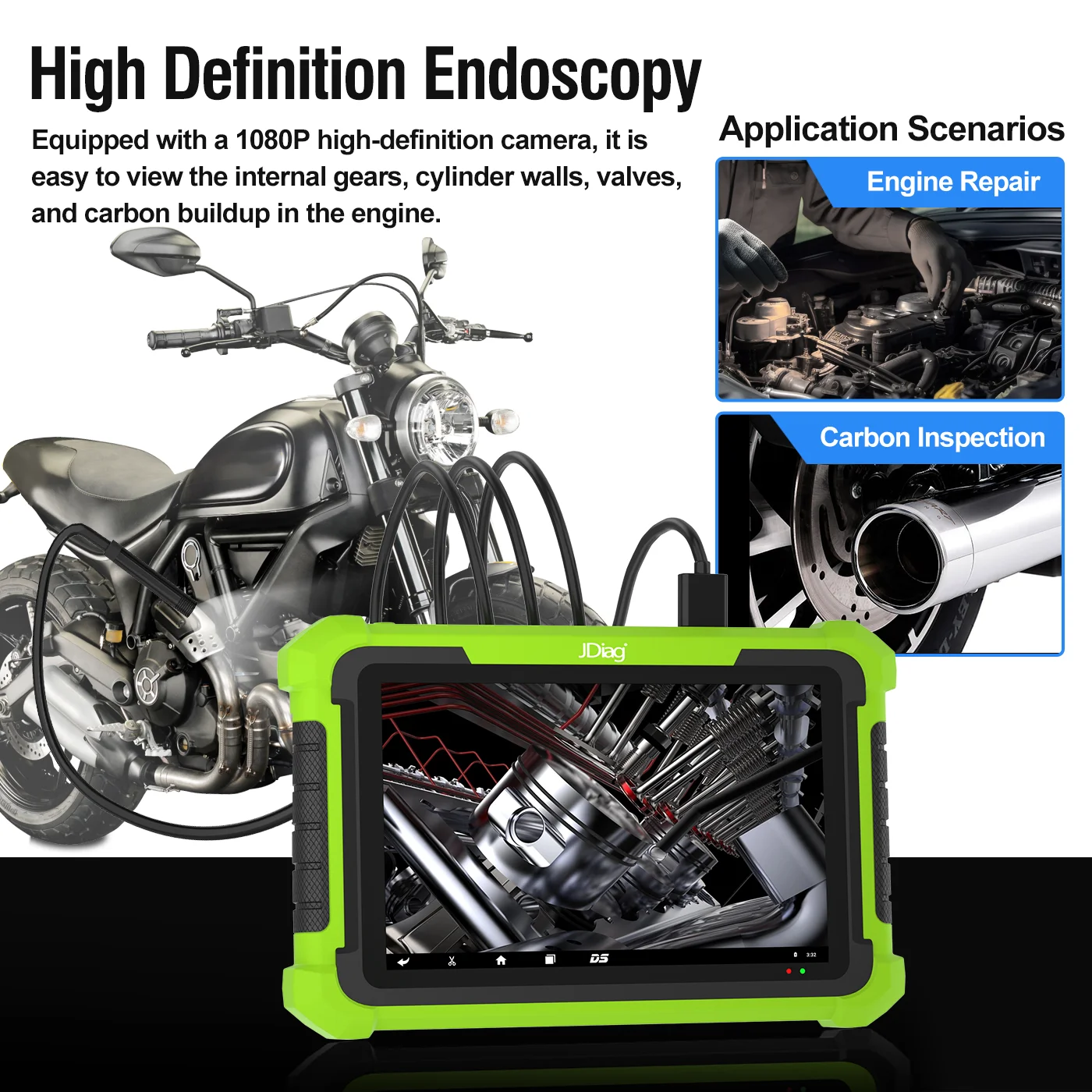

High Definition Endoscopy

Equipped with a 1080P high-definition camera, it is easy to view the internal gears, cylinder walls, valves, and carbon buildup in the engine.

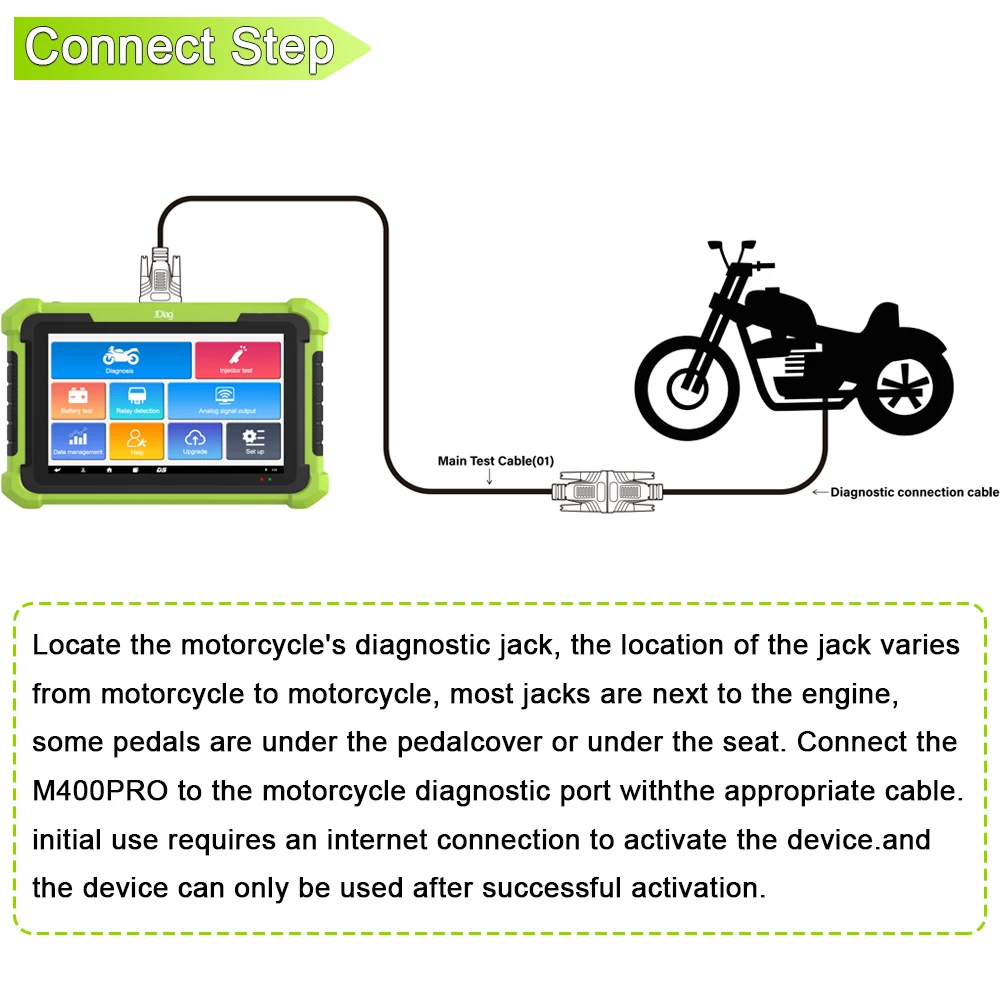

Connection Steps (Motor Diag System)

Locate the motorcycle's diagnostic jack, the location of the jack varies from motorcycle to motorcycle, most jacks are next to the engine, some pedals are under the pedalc over or under the seat. Connect the M400 to the motorcycle diagnostic port with the appropriate cable. lnitial use requires an internet connection to activate the device and the device can only be used after successful activation.

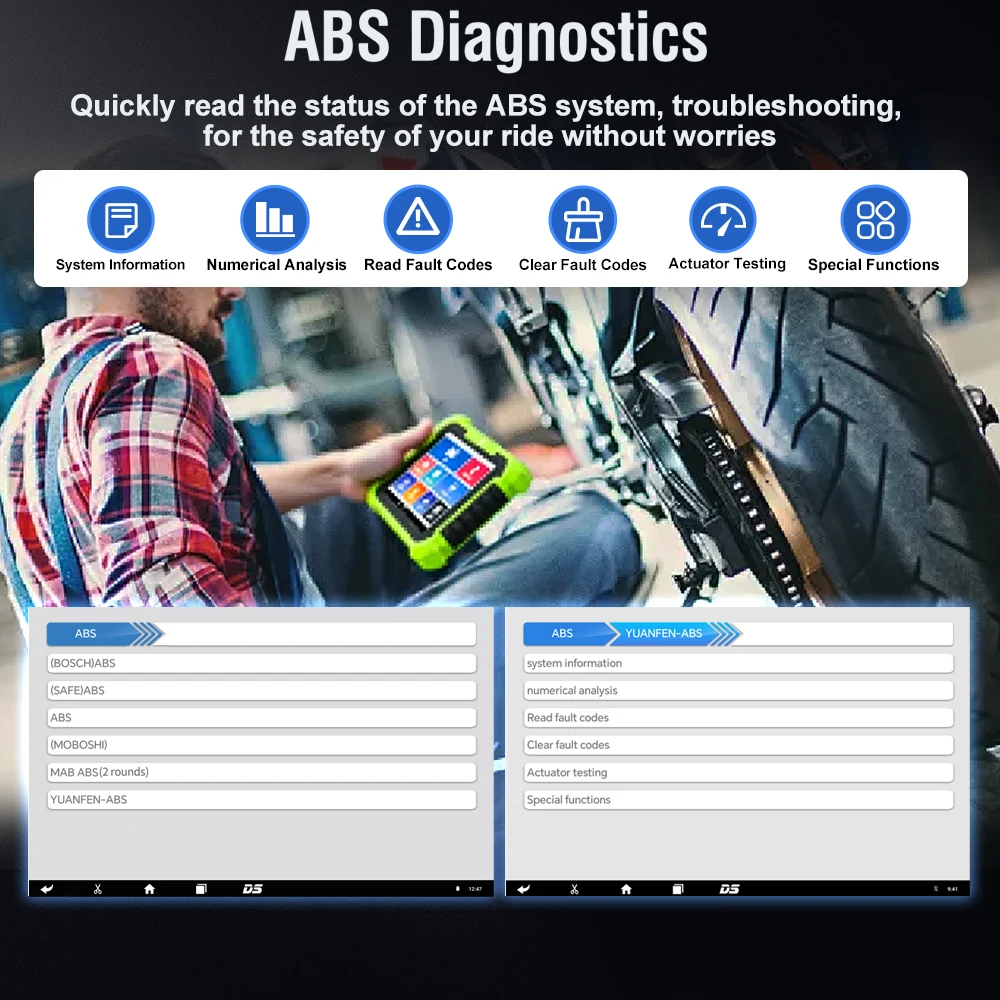

ABS System Diagnosis

Quickly read the status of the ABS system, troubleshooting, for the safety of your ride without worries

Select [Diagnostics]-[General EFl]→[ABS System Diagnostics], enter the main
page of [ABS System Diagnostics], and select the corresponding brand name.

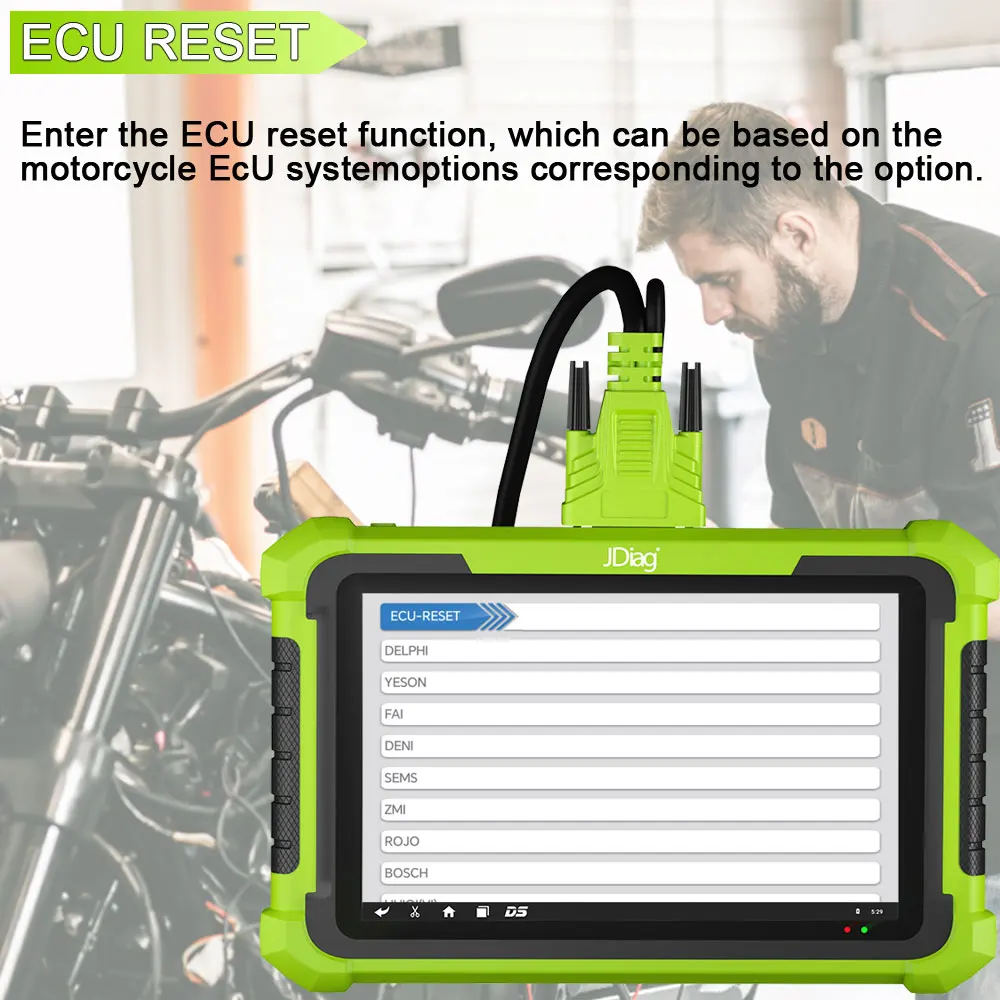

ECU Reset

1. Enter the ECU reset function, which can be based on the motorcycle ECU system options corresponding to the option.

2. Take DELPHl as an example, click DELPHl, the device will pop up ECU reset operation method, according to the prompt step operation can be completed ECU reset.

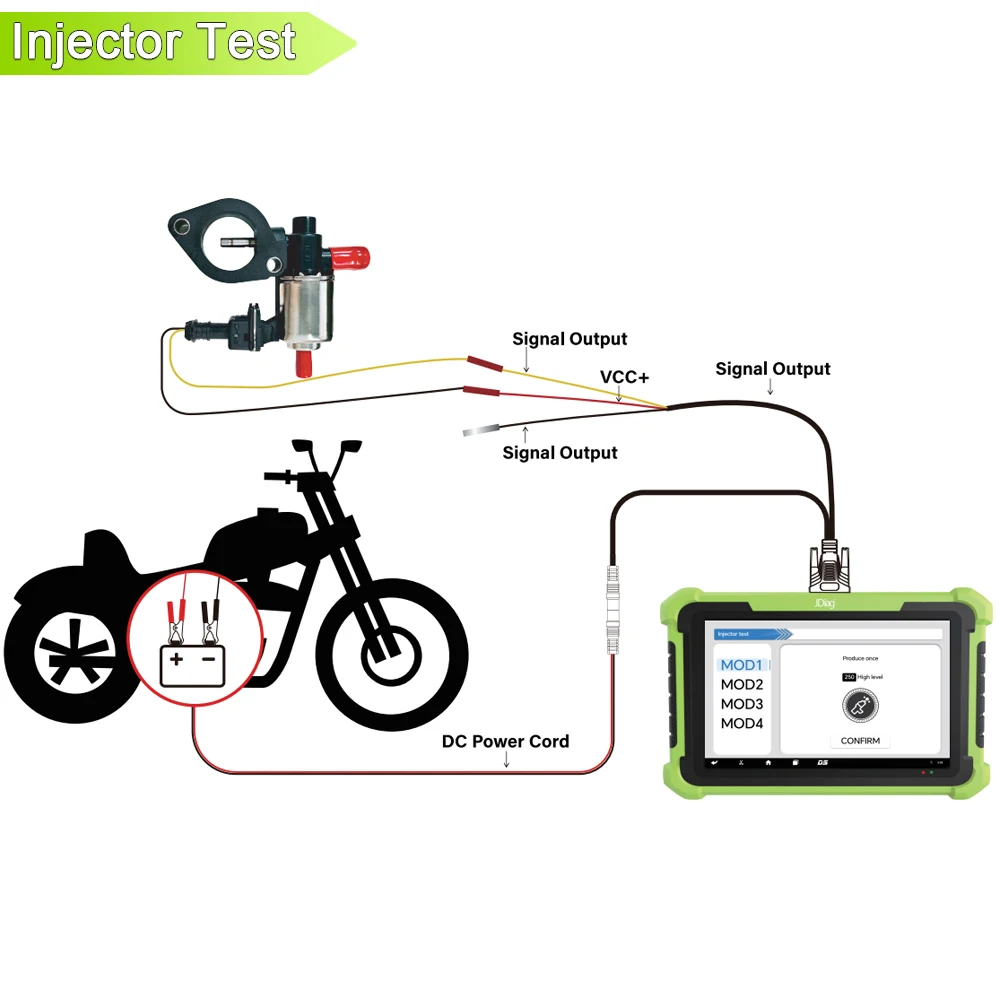

Injector Test

1. Connect the injector, take the injector of FAl as an example, it needs external power supply, refer to the following figure for the connection:

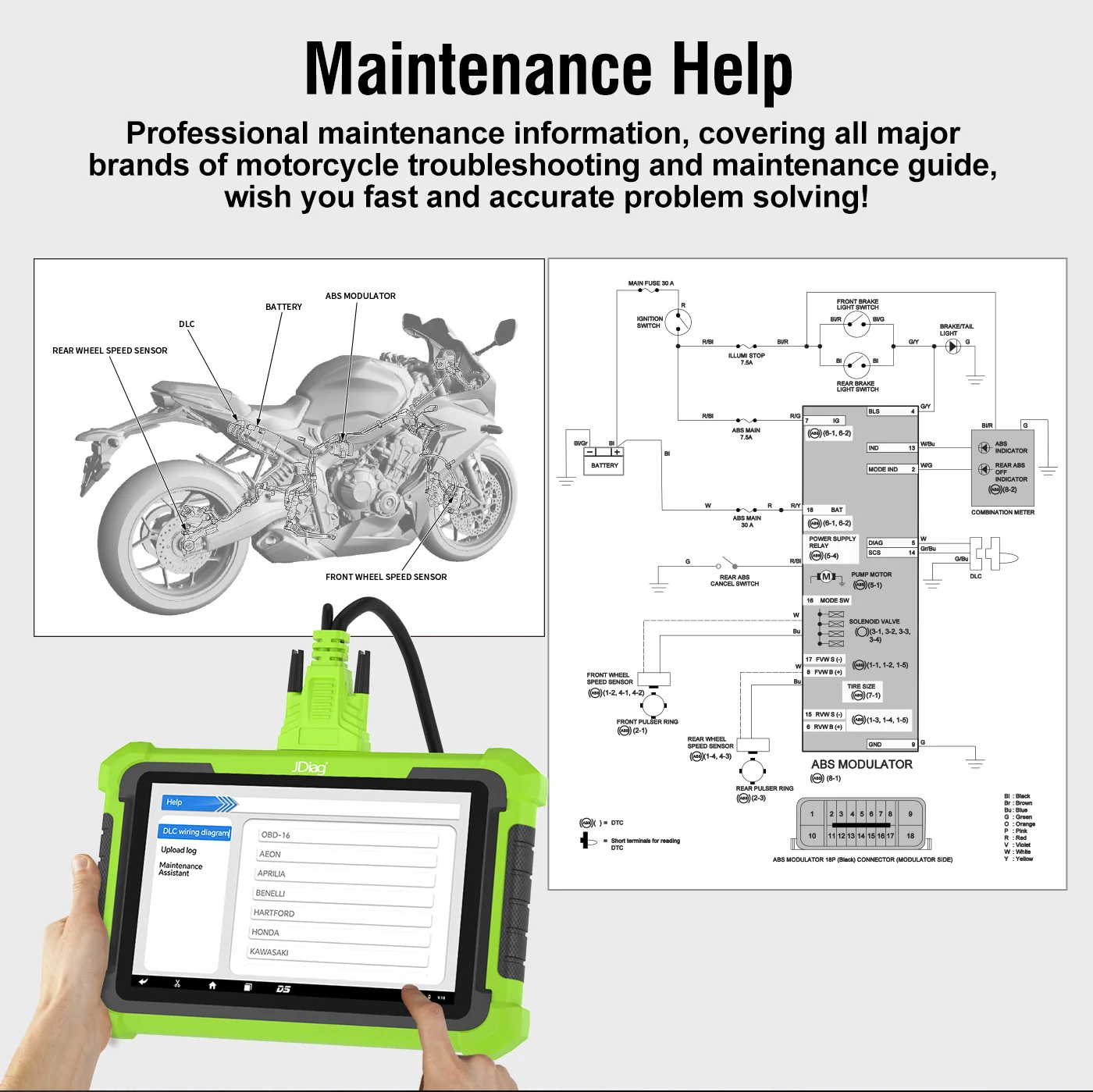

Maintenance Help

Professional maintenance information, covering all major brands of motorcycle troubleshooting and maintenance guide, wish you fast and accurate problem solving!

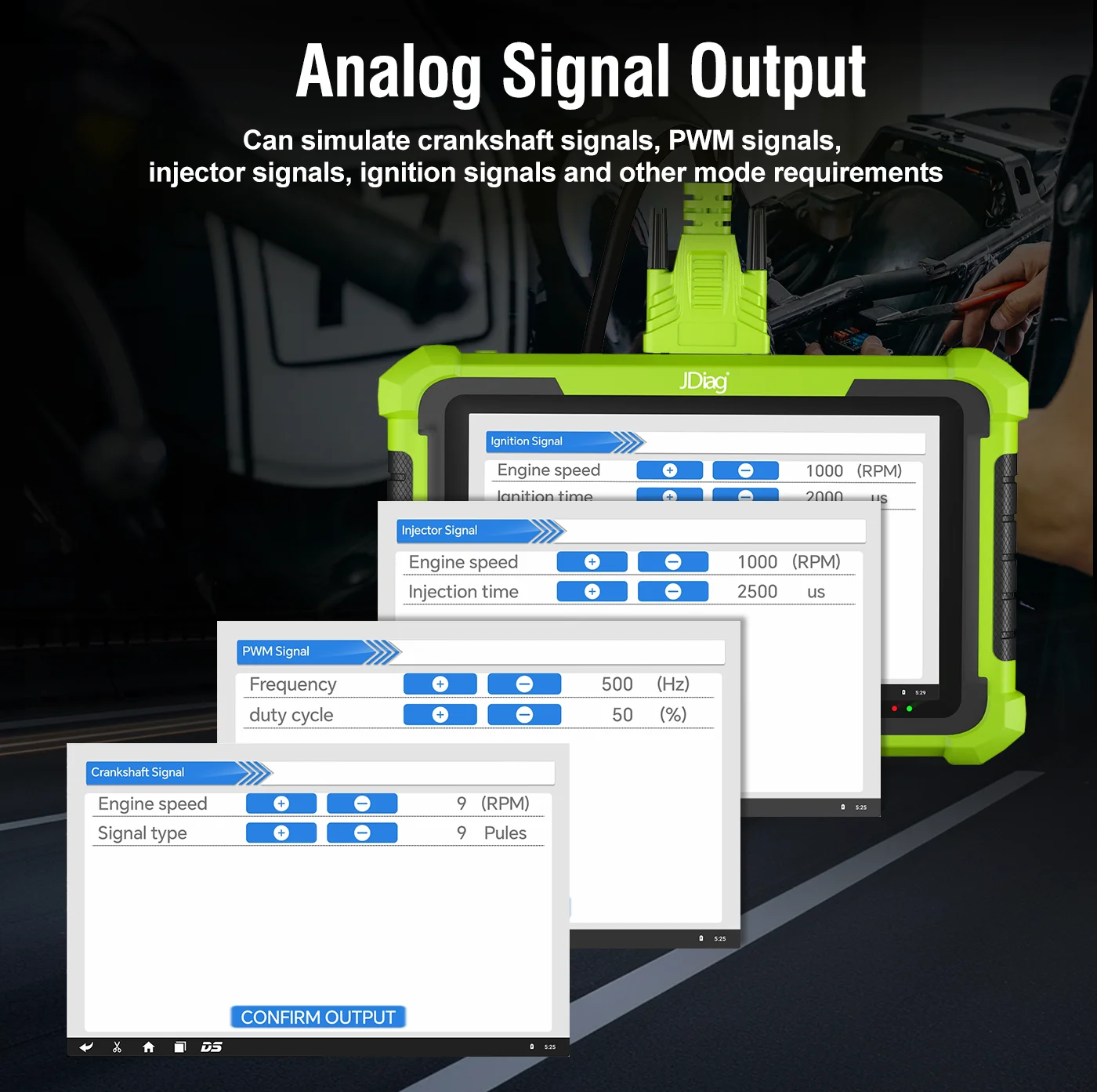

Analog Signal Output

Can simulate crankshaft signals, PWM signals, injector signals, ignition signals and other mode requirements

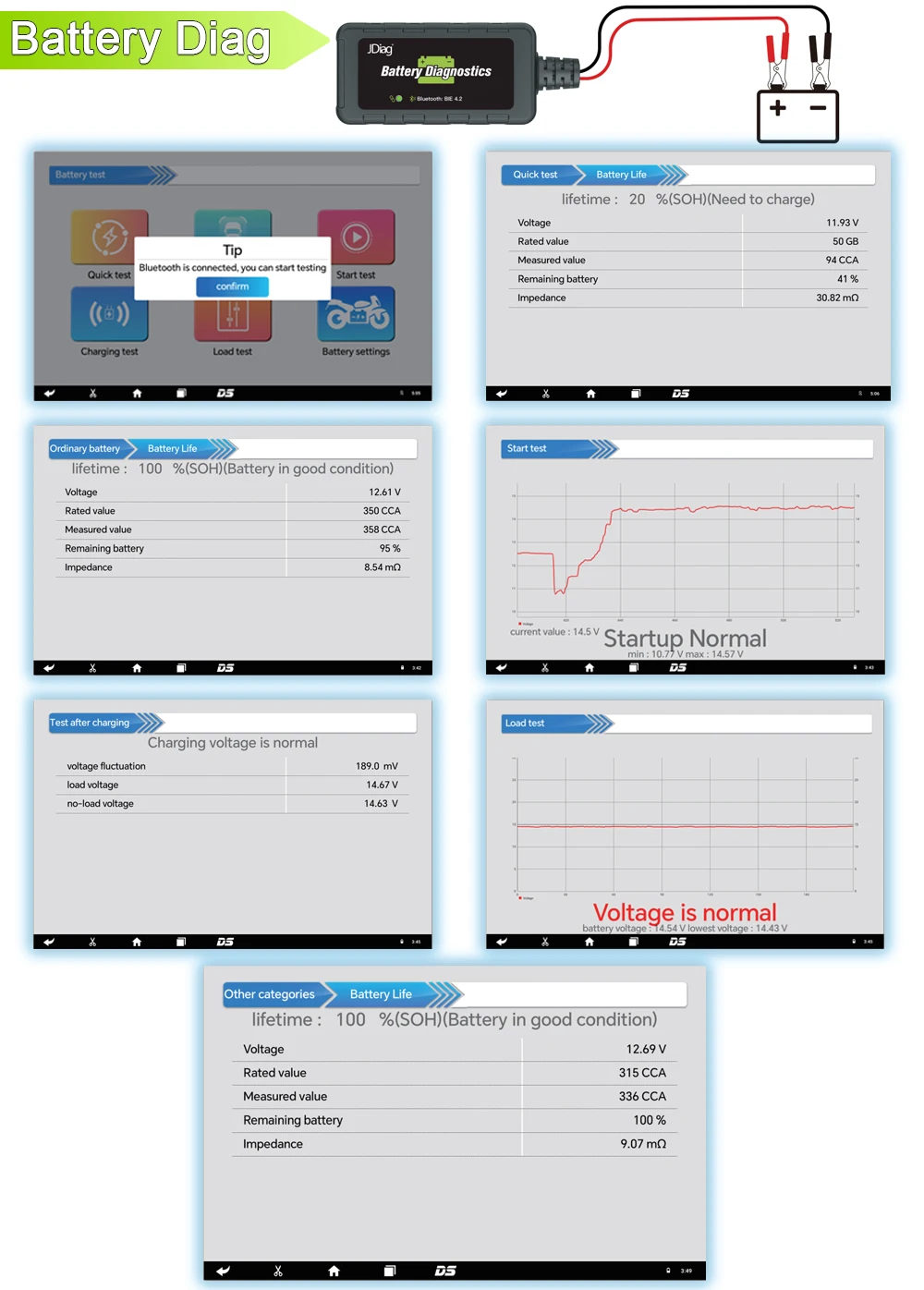

Battery Testing

A variety of testing modes standard test, start-up test, charging test, so that the data more accurate and more comprehensive

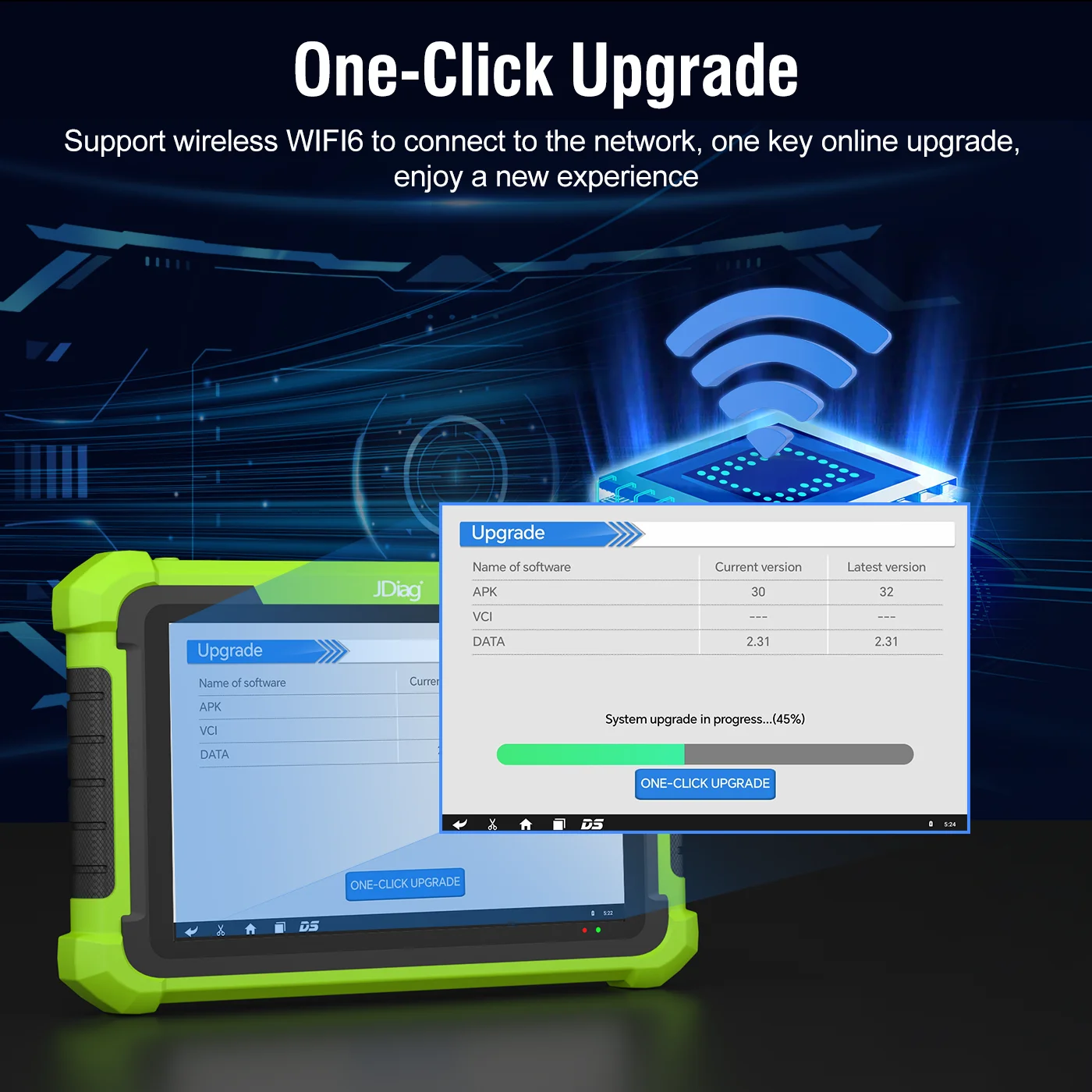

One-Click Upgrade

Support wireless WlFl6 to connect to the network, one key online upgrade, enjoy a new experience

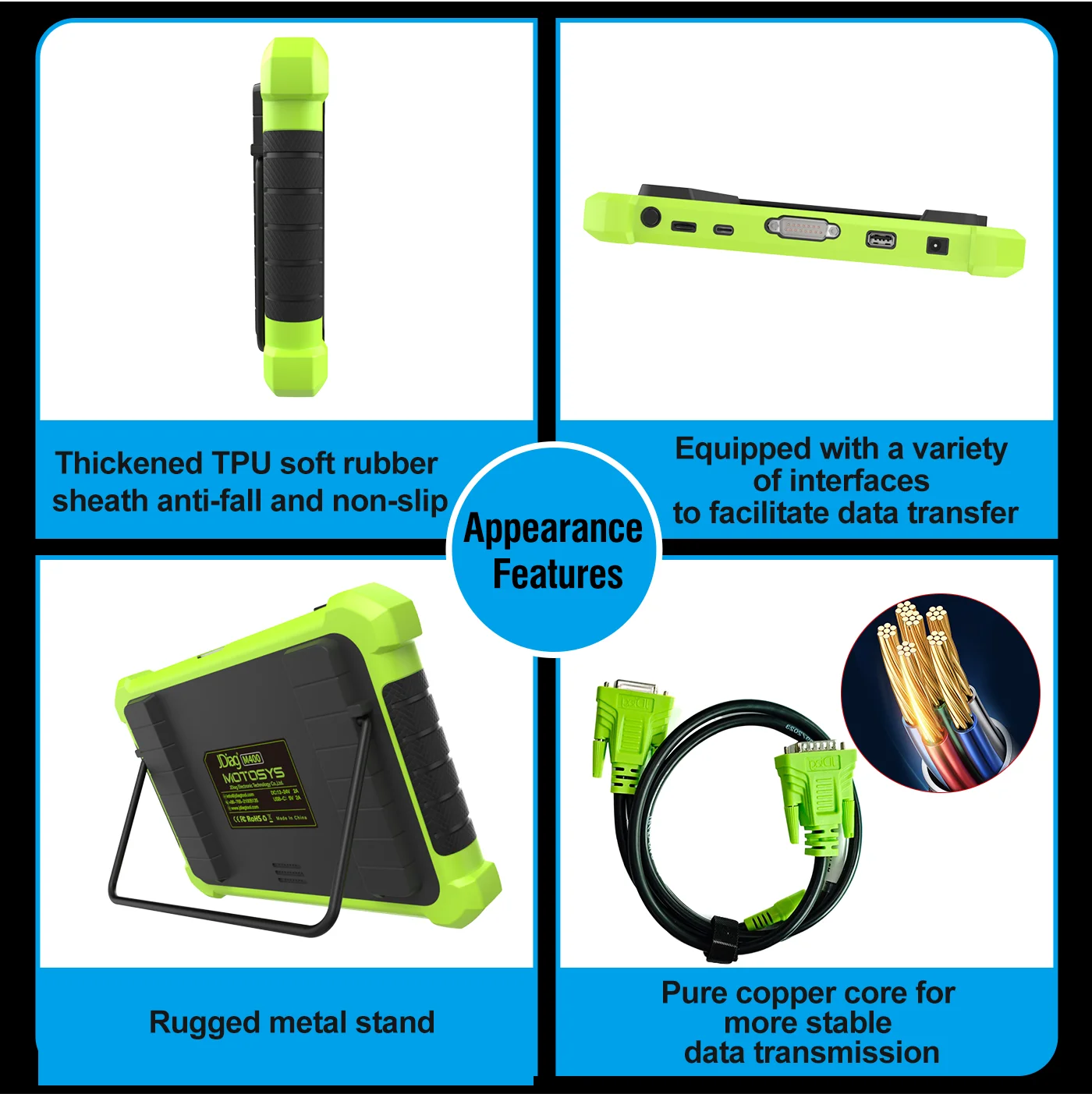

Appearance Features

1.Thickened TPU soft rubbersheath anti-fall and non-slip
2.Equipped with a varietyof interfacesto facilitate data transfer
3.Rugged metal stand
4.Pure copper core for more stable data transmission
